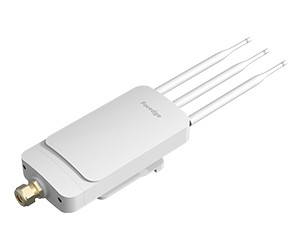

W668OHAP Outdoor Dual-Band AX3000 WIFI 6 Wireless Access Point
W668OHAP Wi-Fi6 3000M dual-band outdoor AP is a high-performance outdoor AP specially launched by Foredge with features as below:
- 1024QAM High-speed Access Rate
- OFDMA High-density User Access
- User-level Security Access
Multi-SSID Access - Multiple Authentication Methods
- Abundant QoS Policies
- Mesh and NAT Feature
- Local and Remote device monitoring
Opis
Przegląd
W668OHAP V2 outdoor AP is recommended to be deployed in outdoor environments such as campus playgrounds, commercial plazas, wireless cities, and tourist attractions.
Flash
SPI NAND 128MB
Wilgotność robocza
10%~ 90% wilgotność względna bez kondensacji
Wymiary (szer. × gł. × wys.)
243*105.5*68.5mm
port
1*2500Mbps WAN adaptive network port + 1*1000Mbps LAN adaptive network port
Specyfikacje
| specyfikacje | |||||
| Model produktu | W668OHAP V2 | ||||
| Flash | SPI Nand 128MB | ||||
| DDR | 256MB | ||||
| 2.4G working frequency band | 2,4 GHz ~ 2,484 GHz | ||||
| Protokół transmisji 2.4G WIFI | 802.11 b / g / n / ax | ||||
| 5G working frequency band | 5.150GHz～5.850GHz | ||||
| Protokół transmisji 5G WIFI | 802.11 a / n / ac / ax | ||||
| WIFI antenna | 2 external 2.4G & 5G dual-band antennas, 1 external 5G single-band antenna | ||||
| Maximum speed | 2.4G provides a maximum access rate of 574Mbps, 5G provides a maximum access rate of 2402Mbps | ||||
| Zasilanie bezprzewodowe 2.4G | 802.11b | 11M | 25±2dBm | 1M | 27±2dBm |
| 802.11g | 54M | 22±2dBm | 6M | 24±2dBm | |
| 802.11n HT20 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
| 802.11n HT40 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
| 802.11ax HT20 | MCS11 | 18±2dBm | MCS0 | 20±2dBm | |
| 802.11ax HT40 | MCS11 | 18±2dBm | MCS0 | 20±2dBm | |
| Bezprzewodowe zasilanie 5G | 802.11a | 54M | 19±2dBm | 6M | 21±2dBm |
| 802.11n HT20 | MCS7 | 25±2dBm | MCS0 | 27±2dBm | |
| 802.11n HT40 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
| 802.11ac HT20 | MCS7 | 22±2dBm | MCS0 | 22±2dBm | |
| 802.11ac HT40 | MCS7 | 21±2dBm | MCS0 | 23±2dBm | |
| 802.11ac HT80 | MCS9 | 21±2dBm | MCS0 | 23±2dBm | |
| 802.11ax HT20 | MCS11 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT40 | MCS11 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT80 | MCS11 | 19±2dBm | MCS0 | 21±2dBm | |
| 802.11ax HT160 | MCS11 | 17±2dBm | MCS0 | 19±2dBm | |
| Czułość odbioru 2.4G | 802.11b | 11M | -87dBm | 1M | -96dBm |
| 802.11g | 54M | -75dBm | 6M | -93dBm | |
| 802.11n HT20 | MCS7 | -73dBm | MCS0 | -92dBm | |
| 802.11n HT40 | MCS7 | -70dBm | MCS0 | -89dBm | |
| 802.11ax HT20 | MCS11 | -64dBm | MCS0 | -92dBm | |
| 802.11ax HT40 | MCS11 | -61dBm | MCS0 | -89dBm | |
| Czułość odbioru 5G | 802.11a | 54M | -74dBm | 6M | -92dBm |
| 802.11n HT20 | MCS7 | -73dBm | MCS0 | -90dBm | |
| 802.11n HT40 | MCS7 | -70dBm | MCS0 | -87dBm | |
| 802.11ac HT20 | MCS7 | -67dBm | MCS0 | -91dBm | |
| 802.11ac HT40 | MCS7 | -63dBm | MCS0 | -88dBm | |
| 802.11ac HT80 | MCS9 | -60dBm | MCS0 | -84dBm | |
| 802.11ax HT20 | MCS11 | -62dBm | MCS0 | -91dBm | |
| 802.11ax HT40 | MCS11 | -59dBm | MCS0 | -89dBm | |
| 802.11ax HT80 | MCS11 | -56dBm | MCS0 | -86dBm | |
| 802.11ax HT160 | MCS11 | -53dBm | MCS0 | -83dBm | |
| 2.4G EVM | 802.11b:≤-10 dB；802.11g:≤-25 dB；802.11n:≤-28dB ; 802.11ax: ≤-35 dB | ||||
| 5G EVM | 802.11a:≤-25 dB； 802.11n:≤-28 dB；802.11ac:≤-32 dB ; 802.11ax:≤-35 dB | ||||
| Odchylenie częstotliwości (ppm) | ±20ppm | ||||
| Interfejs (WAN) | 1 10/100/1000/2500Mbps WAN port, supports 48V POE power supply | ||||
| Interfejs (LAN) | 1 10/100/1000Mbps LAN port | ||||
| Przyciski zewnętrzne | reset button (press for 6-10 seconds to restore factory default configuration) | ||||
| Status indicator | three-color light (three different colors represent: sys-red, 2.4G-green, 5.8G-blue) | ||||
| Zasilanie | PoE 802.3at, DC 12V/1.5A, | ||||
| Maksymalny pobór mocy | < 15W | ||||
| Rozmiar produktu | 243*105.5*68.5mm (including bracket) | ||||
| Waga | about 1.6kg | ||||
| Środowisko pracy | normal working temperature: -20°C to 55°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation) | ||||
| Protection level | IP67 | ||||
Informacje dodatkowe
Dodatkowe informacje
| Modele | W668OHAP |
|---|---|
