Construction d'un système de surveillance pour le collège de défense chimique de l'armée de libération du peuple

The Army Chemical Defense College of the Chinese People’s Liberation Army is affiliated to the Army and is responsible for cultivating intermediate and junior chemical defense command officers and intermediate and senior chemical defense engineering and technical officers for the entire army. In order to facilitate timely command and dispatch, it is necessary to build a monitoring system with clear pictures, high early warning, and strong controllability.

1. Besoins des clients

· Ensure that the network is connected to monitoring points distributed in various areas to conduct real-time monitoring of the military academy and surrounding areas.

· Ensure that the data transmission screen will not drop or freeze 24 hours a day, and will be smooth, stable, and clearly visible.

· The transmission equipment supports unified management and configuration, and real-time monitoring of the working status of each point, making operation and maintenance simple.

· Transmission equipment should support PoE power supply to facilitate access to power in outdoor environments and meet flexible distribution requirements.

· The PoE switch supplies power to all cameras in a unified manner, which can avoid additional wiring and is simple and beautiful.

· Data transmission has customizable flexibility.

· Data transmission has high security performance.

Liste des équipements

· 2 DF5700-24GP-4TF 10G uplink 24-port Gigabit Layer 3 managed PoE switches

· 2 PS1084S Gigabit Layer 2 managed PoE switches

· 37 AI6024 Gigabit uplink 24-port PoE switches

2. Features of the plan

· It has strong business processing capabilities, complete security protection mechanisms, various reliability protections, and easy operation and maintenance.

· Multiple AI functions effectively ensure that the video data is smoother, smoother, and delay-free. It monitors the working status of the equipment 24 hours a day and detects frozen equipment and abnormal restarts quickly.

· Intelligent PoE management, which can customize port PoE output power, customize PD working time, and customize port priority, providing flexible custom mode selection for monitoring and management of each area.

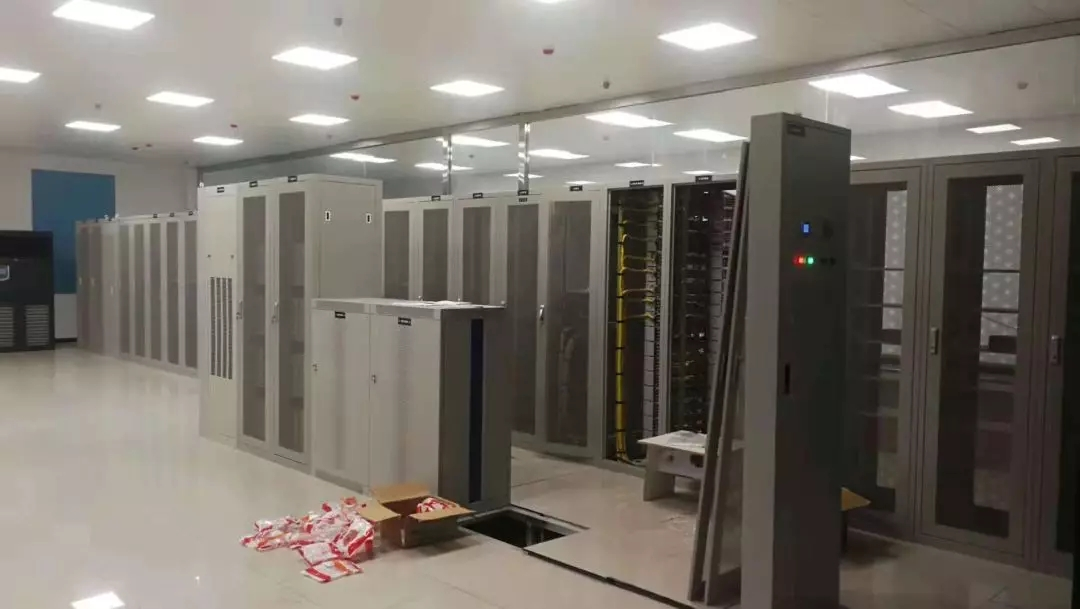

3. Installation site

Related product introduction

DF5700-24GP-4TF 10G uplink 24-port Gigabit Layer 3 managed PoE switch

- 4 ports SFP+ 10G

- 24 ports Gigabit RJ45 (avec alimentation PoE)

- La puce BCM haut de gamme prend en charge la gestion à trois niveaux

- Support RIP, OSPF, routeur statique, serveur DHCP, relais DHCP

- Prise en charge de la gestion des ports, de la gestion PoE, de l'agrégation de liens, du STP, de la protection contre les boucles, de l'IMGP, de 802.1X

- Support Web, CLI, SNMP (V1/V2/V3)

- Prend en charge 4 modes de travail rapide : AI VLAN, AI Extend, AIPoE, AI QOS

· Power supply: 440W

AI2010G 8-port Gigabit Layer 2 managed PoE switch (PS1084S upgraded version)

· 8 Gigabit RJ45 ports (supports PoE power supply)

· Support port management, PoE management, link aggregation, spanning tree, loop protection, multicast, and attack prevention

· Power supply 150W

AI6024 Gigabit uplink 24-port PoE switch

· 24 100M PoE ports (supports 250-meter PoE power supply)

· 1 Gigabit combo port (1 Gigabit network port + 1 Gigabit optical port)

· Supports 5 working modes: standard switching, AI VLAN, AI Extend, AI PoE, AI QoS mode

- Prise en charge de l'IEEE802.3af/at, puissance maximale de sortie d'un seul port : 30 W

- Alimentation maximale de l'ensemble de la machine : 250W
