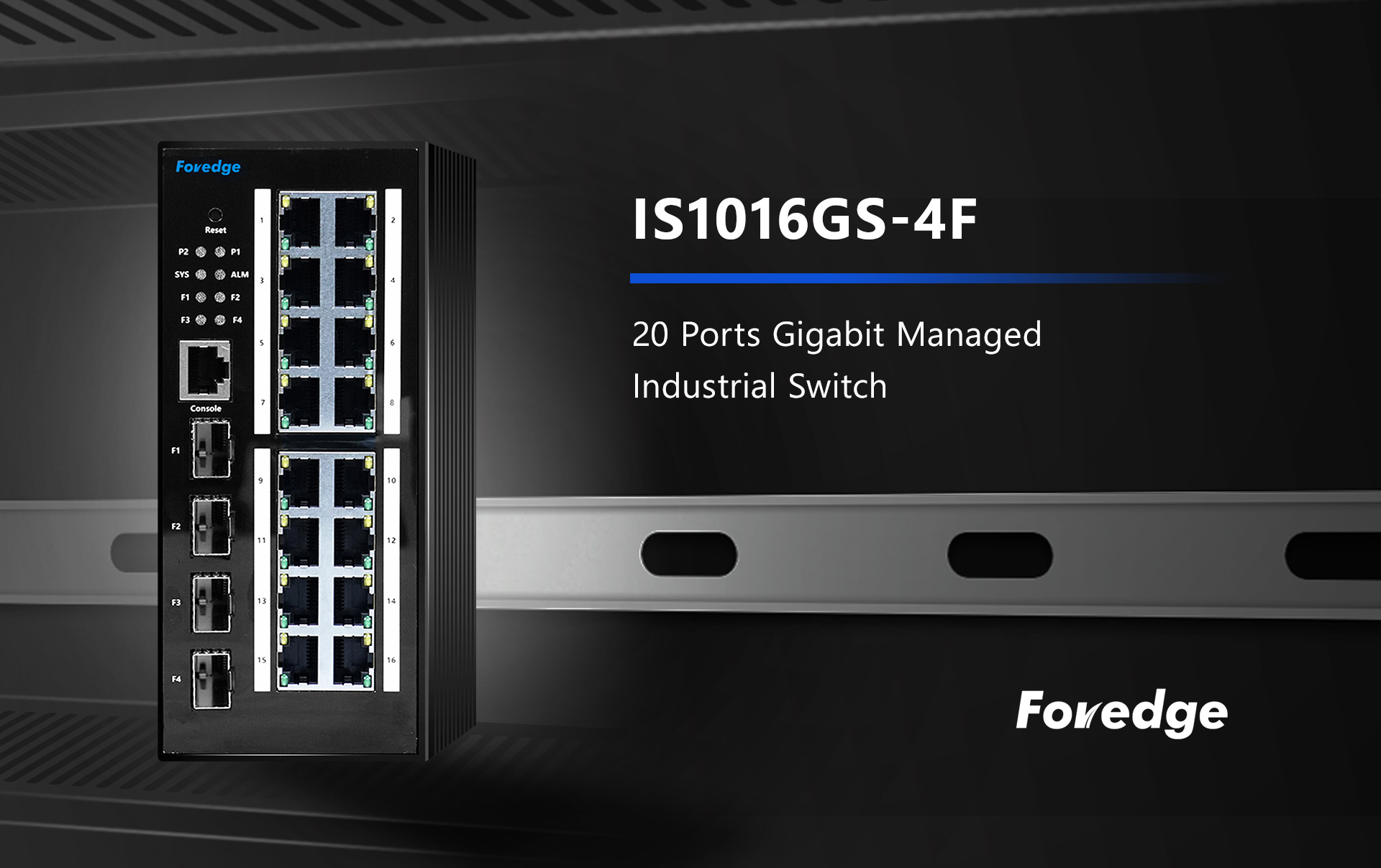

IS1016GS-4F 20-portowy gigabitowy zarządzalny przełącznik przemysłowy

Sprzęt

Interfejs sieciowy

● 16-Port 10/100/1000Mbps RJ45

● 4-Port 10/100/1000Mbps SFP module

● Console ports x1

Protokół sieciowy

● IEEE802.3、IEEE802.3i、IEEE802.3u、IEEE802.3ab、  IEEE802.3z、IEEE802.3ad、IEEE802.3x、IEEE802.1p、 IEEE802.1q、IEEE802.1w、IEEE802.1d、IEEE802.1s

Wydajność

● Switching capacity:40Gbps (Non-Block）

● Forwarding ratet：29.8Mpps

● Packet buffer：4.1Mb

● Forwarding model: Store and forward

Wskaźnik LED

● Power Indicator：P1,P2

● System Indicator：SYS

● Alarm Indicator：ALM

● SFP Port Indicator：Link&Act F1~F2

● RJ45 Port  Indicator：Link&Act 1~8

Zasilanie

● Input voltage：12-56V DC

● Input port：Pluggable 5 pin terminals block, 5.08mm pitch  (support dual DC power source backup, built-in

overcurrent protection, support anti-reverse connection)

Physical Parameter

● Casing：Corrugated high-strength metal housing, IP40

● Installation：DIN-Rail

● Dimension（ LxWxH ）：164mm×130mm×78.8mm

Środowisko

Condition

● Operating Temperature：-40〜 75°C

● Storage Temperature：-40〜 85℃

● Operating Humidity：5%〜95% RH (non-condensing)

● Storage Humidity：0%〜95% RH (non-condensing)

Certification

CE/ROHS/FCC

Oprogramowanie

Protokół

IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i: 10BASE-T Ethernet

IEEE 802.3u: 100BASE-TX fast Ethernet

IEEE 802.3ab: 1000BASE-T gigabit Ethernet

IEEE 802.3z: 1000BASE-X gigabit Ethernet(fiber)

IEEE 802.3ad: Comply link aggregation standard

IEEE 802.3x: Flow control

IEEE 802.1p: About the traffic priority of the second layer of Qos / Cos protocol (multicast filtering)

IEEE 802.1q: VLAN Bridge operation

IEEE 802.1d: STP spanning tree

IEEE 802.1s: MSTP spanning tree

IEEE 802.1w: RSTP spanning tree

IEEE 802.3af

IEEE 802.3at

AI Button

AI Loop Protect

AI VLAN

DHCP

DHCP Snooping

VLAN

4K VLAN

802.1Q VLAN、MAC VLAN ,IP VLAN

Voice VLAN

Tabela MAC

IEEE 802.1d

Obsługa automatycznego uczenia się i starzenia adresów MAC

Support static, dynamic, filtering address table

Bezpieczeństwo

Ochrona hasłem

Decline user access by port number, IP address and MAC address HTTPS、SSL V3、TLS V1、SSH V1/V2

Obsługa wiązania trójskładnikowego IP-MAC-PORT

ARP Protection、IP source Protection、DoS Protection Support DHCP Snooping and DHCP attack protection

Obsługa uwierzytelniania 802.1X, AAA

Support port security, port isolation

Support CPU protection

Oprogramowanie

ACL

Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, port redirection, flow rate limit, QoS  remarking

QoS

Support 16 port queues

Support port priority, 802.1P priority, DSCP priority

Support SP, RR, WRR, priority scheduling algorithm

Spanning Tree

Support STP(IEEE 802.1d) ，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s)

Obsługa ochrony pętli, ochrony mostka root, ochrony TC, ochrony BPDU, filtrowania BPDU

Multicast

Support IGMP v1/v2 Snooping

Support multicast VLAN

Supports multicast filtering, packet statistics, and unknown multicast discards

Storm Suppression

Multicast suppression

Broadcast suppression

Unknown unicast suppression

Link Aggregation

Static aggregation

Dynamic aggregation

Support IP, MAC, and hybrid load balancing modes

Up to 32 aggregation groups

IPv6

IPv6 Ping、IPv6 Tracert、IPv6 Telnet

IPv6 SSH 、IPv6 SSL

Zarządzanie i Konserwacja

WEB management（ HTTP、HTTPS、SSL V3 ）

CLI（ Telnet, SSH V1/V2, Local serial port）

SNMP V1/V2/V3

LLDP、RMON

ARP protection, IP source protection, DoS protection

CPU monitoring, memory monitoring

System log, grading warning

Obsługa ping, wykrywanie Tracert, wykrywanie kabli
