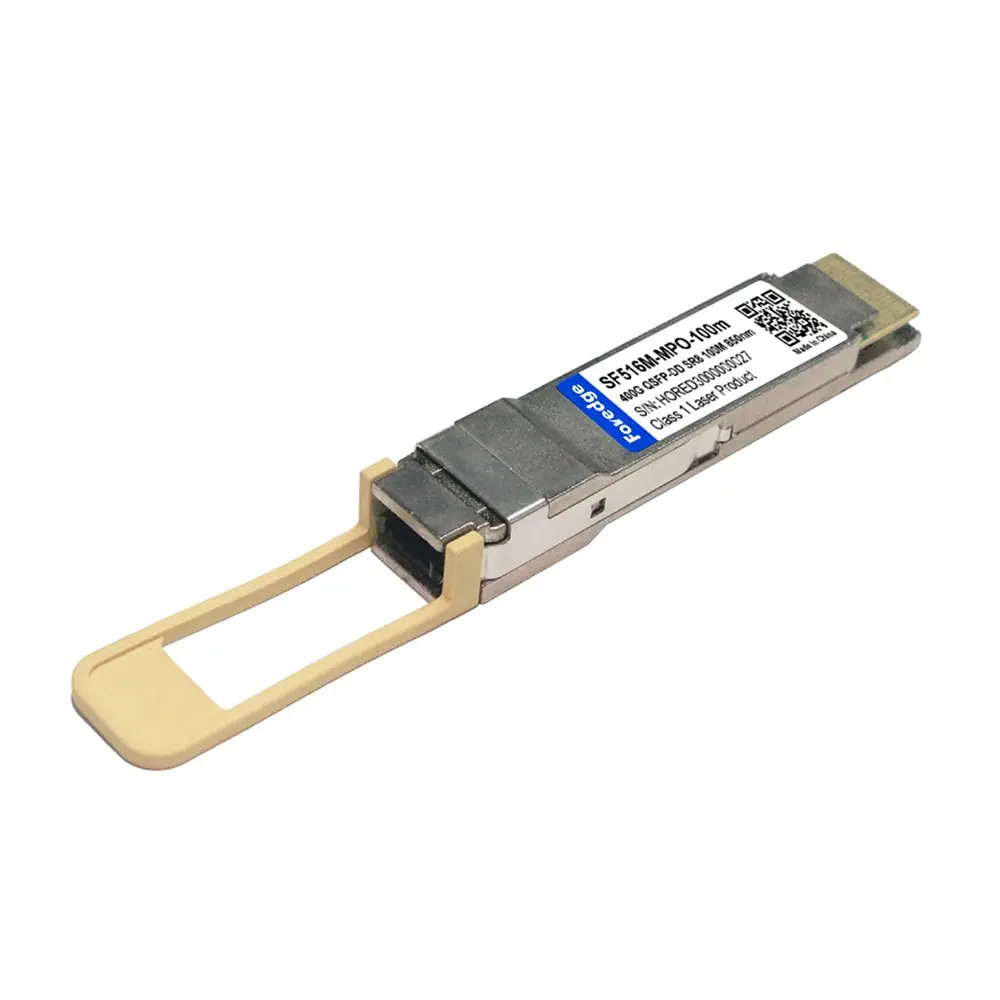

SF516M-MPO-100M
400G QSFP-DD SR8 100m Transceiver
8x50G PAM4 parallel optics over OM3/OM4 multimode with MPO-16 APC.
- 400Gbps
- DATA RATE
- 100 m
- REACH
- QSFP-DD
- FORM FACTOR
| Form Factor | QSFP-DD |
|---|---|
| Data Rate | 400Gbps (8x 50G PAM4) |
| Wavelength | 850 nm |
| Max Reach | 70 m (OM3) / 100 m (OM4) |
| Fiber Type | Multimode |
| Connector | MPO-16 APC |
| Diagnostics | CMIS 5.2 |
| Operating Temperature | 0 °C to +70 °C |
Eight-channel parallel pluggable QSFP-DD for 400 Gigabit Ethernet short-range links. It integrates eight data lanes in each direction at 8x 26.5625 GBd PAM4, reaching 70 m over OM3 or 100 m over OM4 multimode fiber at a nominal 850 nm wavelength through a single MPO-16 APC receptacle.
400GBASE-SR8 parallel optics
8 channels of 50G PAM4 over a single MPO-16 APC multimode interface
100 m on OM4
70 m over OM3 or 100 m over OM4 at 850 nm VCSEL arrays
CMIS 5.2
Full diagnostic and channel control over the two-wire interface
