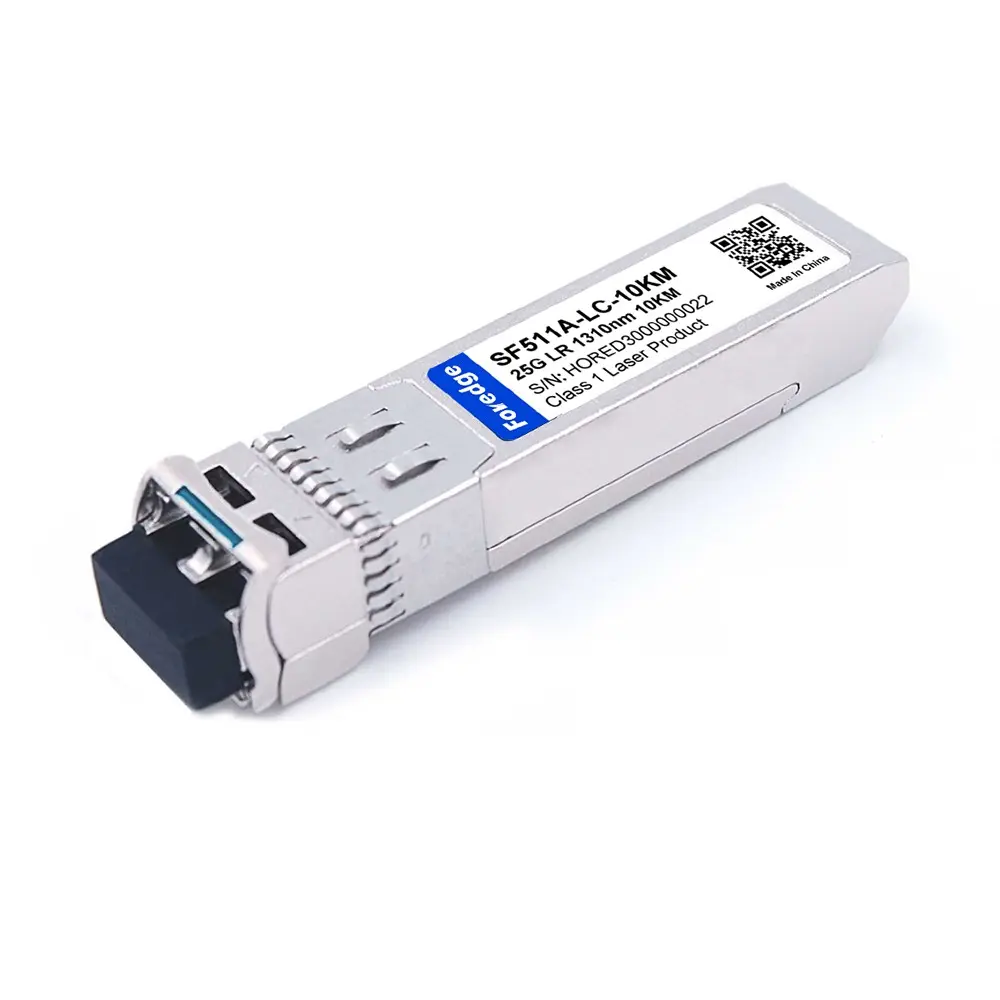

SF511A-LC-10KM
25G SFP28 LR 10km Transceiver
25GBASE-LR over duplex LC single-mode with a 1310 nm DFB laser.
- 25.78Gbps
- DATA RATE
- 10 km
- REACH
- SFP28
- FORM FACTOR
| Form Factor | SFP28 |
|---|---|
| Data Rate | 25.78Gbps |
| Wavelength | 1310 nm DFB |
| Max Reach | 10 km |
| Fiber Type | Single Mode |
| Connector | LC Duplex |
| Diagnostics | SFF-8472 |
| Operating Temperature | 0 °C to +70 °C |
SFP28 transceiver supporting up to 25.78 Gbps with a 1310 nm DFB laser and PIN photodiode, reaching up to 10 km over single-mode fiber. It follows the SFP+ MSA footprint with a duplex LC receptacle, real-time digital diagnostic monitoring and single +3.3 V supply.
25GBASE-LR
1310 nm DFB laser and PIN photodiode for 10 km SMF transmission
Real-time DDM
SFF-8472 digital diagnostic monitoring over the two-wire interface
CPRI ready
Qualified for 25GBASE-LR and CPRI rate-10 fronthaul applications
