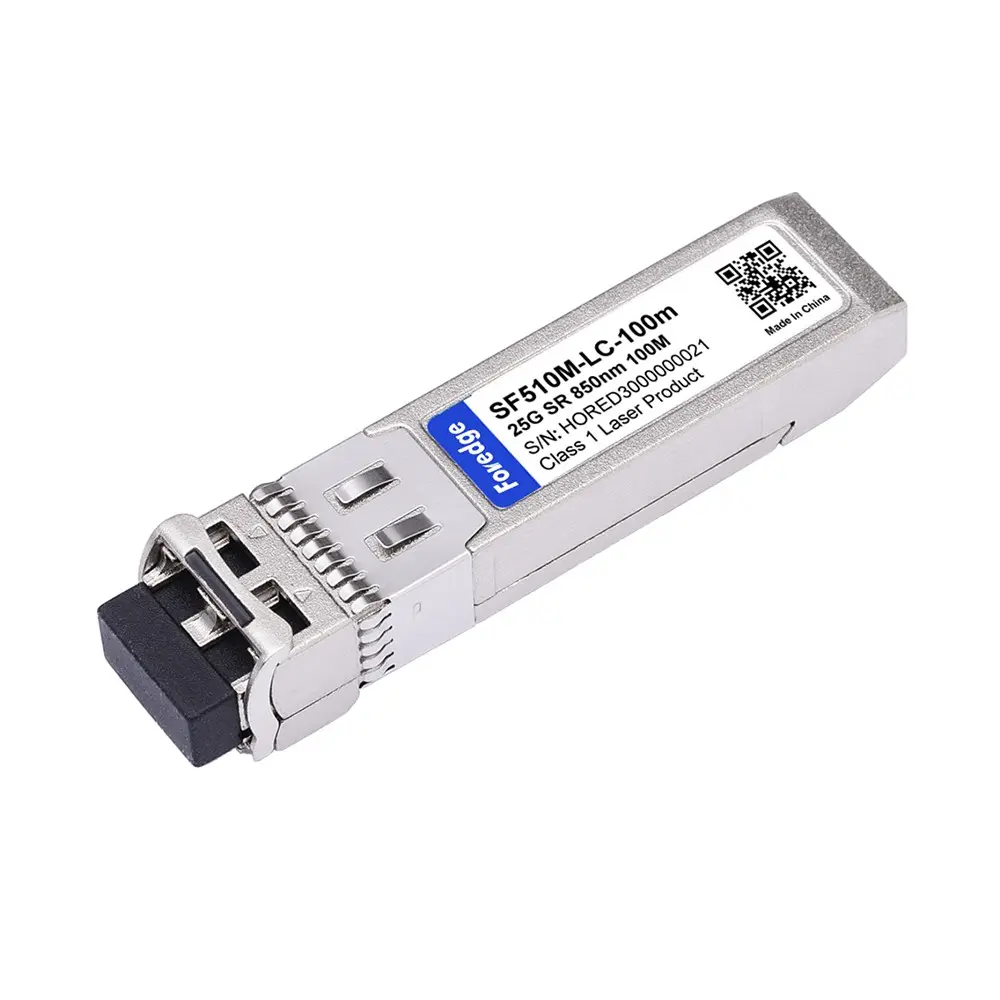

SF510M-LC-100M
25G SFP28 SR 100m Transceiver
25G Ethernet over OM3/OM4 multimode with an 850 nm VCSEL.
- 25.78Gbps
- DATA RATE
- 100 m
- REACH
- SFP28
- FORM FACTOR
| Form Factor | SFP28 |
|---|---|
| Data Rate | 25.78Gbps |
| Wavelength | 850 nm VCSEL |
| Max Reach | 70 m (OM3) / 100 m (OM4) |
| Fiber Type | Multimode |
| Connector | LC Duplex |
| Diagnostics | SFF-8472 |
| Operating Temperature | 0 °C to +70 °C |
SFP28 transceiver for 25.78 Gbps data links with an 850 nm VCSEL laser and PIN receiver, reaching 70 m over OM3 or 100 m over OM4 multimode fiber. Metal enclosure for lower EMI, hot-pluggable footprint with an LC connector, integrated digital diagnostic monitoring and under 1 W power dissipation.
25G Ethernet
Up to 25.78 Gbps data links over OM3/OM4 multimode cabling
Under 1 W
Low power dissipation for dense 25G server and ToR populations
Integrated DDM
Two-wire interface with SFF-8472 digital diagnostics
