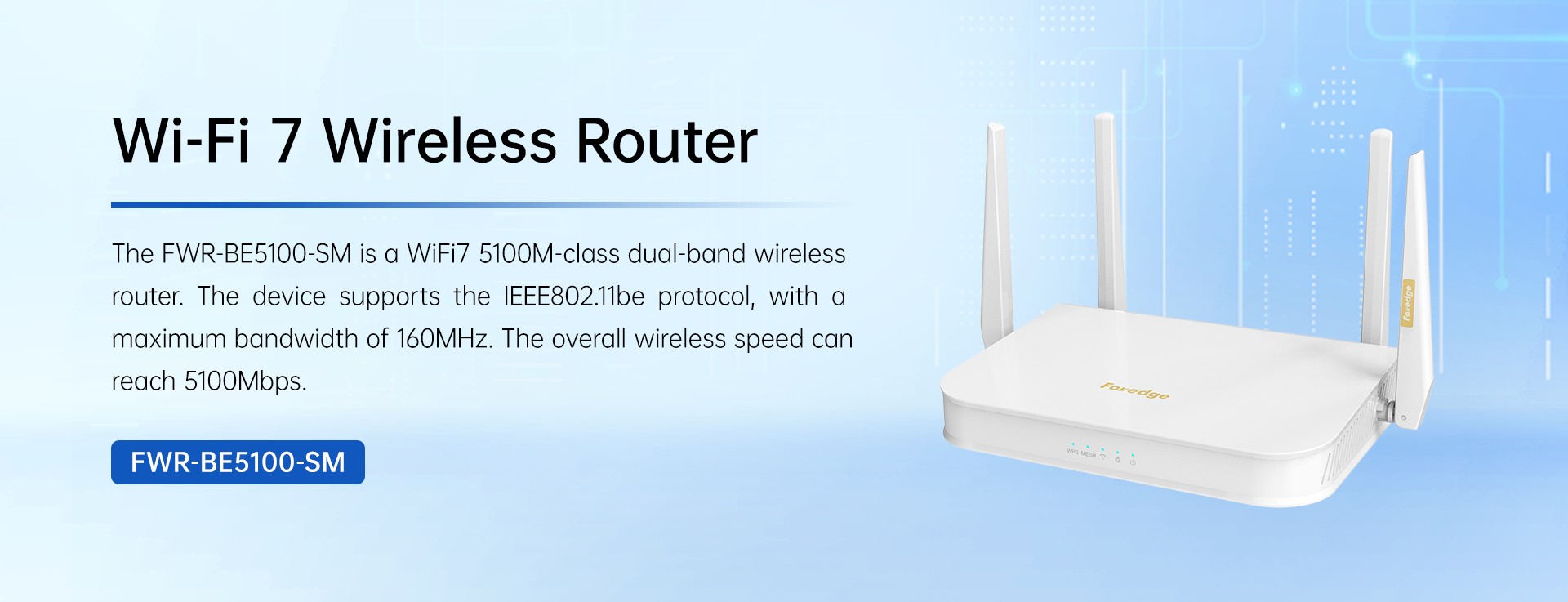

FWR-BE5100-SM Wi-Fi 7 Wireless Router
- 5100M wireless data rate, enjoy 4K high-definition video
- MLO dual-band aggregation enables the device to simultaneously connect to the 2.4G and 5G frequency bands,
- MU-MIMO technology enables multiple terminals to transmit simultaneously on the same channel, allowing you to enjoy your favorite content without any network congestion.
- OFDMA technology enables multiple user data to be transmitted simultaneously in each frame, significantly enhancing the Wi-Fi transmission efficiency.
- 4K-QAM modulation has lower latency compared to WIFI6, effectively reducing network delay and significantly enhancing the gaming
- The equipment provides 1 2.5G Ethernet WAN port and 3 Ethernet LAN ports, enabling full utilization of each megabit of external network bandwidth.
- Visualize local WEB management. The system comes with a quick configuration wizard at the start-up, and it can be configured in justone minute for use.
- Remote operation of the cloud platform makes management more effortless and efficient.
- Support for Apollo cloud platform.
설명
개요
전송 속도 1167Mbps의 무선 듀얼 밴드 라우터
포트
10/100M/1000M 이더넷(WAN) 인터페이스 1개 제공
3개의 10/100M/1000M 어댑티브 이더넷(LAN) 인터페이스 제공 및 자동 MDI/MDIX 지원
작동 습도
5%RH~90%RH 비 응축
치수(W × D × H)
218mm×153mm×40mm
사양
|
Hardware feature |
||||
|
프로토콜 표준 |
IEEE 802.11a/b/g/n/ac/ax / IEEE 802.3 / IEEE 802.3u / IEEE 802.3x / IEEE 802.3bz |
|||
|
포트 |
1*10/100M/1000M/2500M WAN port, supporting Auto MDI/MDIX 3*10/100M/1000M LAN 포트, 자동 MDI/MDIX 지원 |
|||
|
버튼 |
WPS/MESH button Reboot/Reset button |
|||
|
LED |
5×Green Led |
|||
|
안테나 |
4×5dbi external (non-detachable) 1×5dbi built-in (non-detachable) |
|||
|
전원 |
DC 12V/1A (Outer diameter: 5.5mm, Inner diameter: 2.1mm) |
|||
|
무선 기능 |
||||
|
Wi-Fi Settings |
Dual-band integration Simultaneous operation of 8 SSIDs Wireless black and white list Guest network WPS Isolation of SSIDs TWT |
|||
|
2.4G Frequency band |
2412~2472MHz (Channel：1-13) |
|||
|
5G 주파수 대역 |
5180~5350MHz (Channel：36-64） 5490MHz~5730MHz (Channel：100-144) 5735MHz~5835MHz (Channel：149-165) |
|||
|
무선 전송 속도 |
2.4G：688Mbps 5G：4323Mbps |
|||
|
MIMO |
2.4G：2×2 MU-MIMO 5G：3×3 MU-MIMO |
|||
|
Transmission 전원 |
2.4G：22dBm±1.5dB 5G：19dBm±1.5dB |
|||
|
Working modes |
라우터 Bridge WDS |
|||
|
Radio Settings |
Countries/regions setting Channel setting Bandwidth setting Minimum signal strength for connection Wi-Fi transmission power setting Wi-Fi Scheduler Spatial multiplexing Greenfield mode |
|||
|
Easy Mesh |
Support automatic election of the master node 3 levels of device cascading |
|||
|
소프트웨어 기능 |
||||
|
네트워크 설정 |
WAN 인터페이스의 연결 유형을 지원합니다: PPPoE, 동적 IP, 고정 IP, MAC 주소 복제, IPV6 설정 및 IPTV 설정 |
|||
|
Status 모니터링 |
Equipment information(model, firmware version, SN 、 IP 、MAC 、Uptime 、CPU usage 、memory usage) Network monitoring (uplink rates 、downlink rates, connection duration) |
|||
|
Application Settings |
Speed limits IP and MAC PPTP/ L2TP VPN DDNS |
|||
|
Equipment Upgrade |
Local firmware Upgrade Online firmware Upgrade |
|||
|
시스템 관리 |
NTP, System logs, Kernel logs, Configuration backup, Reset, Restart |
|||
|
기타 |
||||
|
차원 |
218mm × 153mm ×40mm（Without external antenna） |
|||
|
작업 환경 |
Operating temperature: -10℃ to 50℃ 보관 온도: -40℃ ~ 70℃ Operating humidity: 10%-90%RH (non-considering) Storage humidity: 10%-90%RH (non-considering) |
|||
추가 정보
| 모델 | FWR-BE5100-SM |
|---|---|
| 시리즈 |
