Fengrunda creates an integrated high-quality network system for Lianjia Real Estate’s Shanghai full network

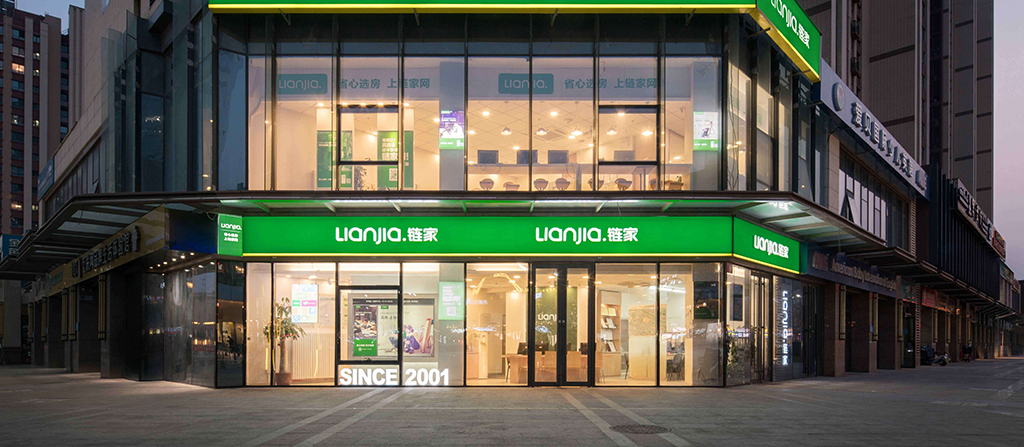

Customer background:
The full name of Lianjia Real Estate is Lianjia (Shanghai) Real Estate Brokerage Co., Ltd. Lianjia is a comprehensive real estate service company involving asset management services, transaction management services and financial management services. It has dozens of stores in Shanghai, and Fengrunda needs Provide a complete set of monitoring solutions for it.
Project requirements:
1、Customer demand: This network monitoring project can simultaneously provide a stable and smooth video monitoring system for network remote monitoring of stores in various districts, towns, and streets of Shanghai Lianjia! (Among them, 18 towns in Pudong, a total of more than 60 stores, each store has 8 surveillance cameras) A total of about 500 surveillance probes provide stable video surveillance engineering solutions!
2. Lianjia surveillance video solutions in Beicai Town, Sanlin Town, Zhoupu Town, Kangqiao Town, Jinqiao Town, Hangtou Town, Zhangjiang, Tangzhen and other places in Pudong New Area provide stable power supply equipment!
3. Ensure that the power supply environment provided by our POE switch makes the video surveillance network of Lianjia’s Lianjia real estate system safe, stable, efficient and high-speed.
4. It is required to cooperate with the stable, continuous and smooth power supply of the front-end video surveillance equipment.

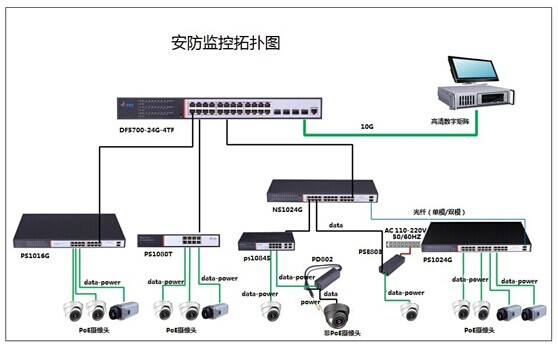

Scheme diagram (topology diagram):
plan description:
The entire network is connected to the Internet through the WAN port of the egress router; our POE power supply switch is connected in series to the LAN port of the router, and is connected to the camera for power supply and data transmission. Fast and stable. It ensures the smoothness of the video, eliminates the need for traditional power supply, and is beautiful, grand and smooth.
Monitoring project site: According to customer needs, monitoring will cover every room inside the building, and ensure that there are no blind spots in stores and aisles in each room area.
Product use site: Fengrunda switch is working .
Brief description of Fengrunda product models used:
Product type | Product model | Specification description |
Core switch | DF5700-24G-4TF | 24 gigabit + 40 Gigabit uplink |
Aggregation switch | NS1024G | 24-port full Gigabit Ethernet switch |
Access switch | PS1016G | 16 ports full Gigabit POE switch |
Access switch | PS1080T | 8-port full Gigabit POE switch |
Access switch | PS1084S | 8-port NMS POE switch |
Access switch | PS1024G | 24-port full Gigabit POE switch |
Program features:
1. Fengrunda PoE switch can directly supply power to the network IPC and transmit data at the same time, which can greatly facilitate user installation, management and use.
2. The smooth and fast operation of the overall video network surveillance solution. The services provided by Fengrunda far exceed the initial needs of customers for our company.
3. The characteristics of video network monitoring IPC are: stable signal, no disconnection, packet loss, or lag.
4. The entire video surveillance design solution is cost-effective and easy to manage and maintain.
Value gained by customers:
1. Customer demand: This network monitoring project can simultaneously provide a stable and smooth video monitoring system for network remote monitoring of stores in various districts, towns, and streets of Shanghai Lianjia! (Among them, 18 towns in Pudong, a total of more than 60 stores, each store has 8 surveillance cameras) A total of about 500 surveillance probes provide stable video surveillance engineering solutions!
2. Fengrunda’s cost-effective POE solution ensures stable power supply for Lianjia surveillance video solutions in Beicai Town, Sanlin Town, Zhoupu Town, Kangqiao Town, Jinqiao Town, Hangtou Town, Zhangjiang, Tangzhen and other places in Pudong New Area equipment!
3. Help customers use the power supply environment provided by our POE switch to save the cost of traditional wiring for video surveillance of Lianjia’s Lianjia real estate system, make it beautiful and easy to manage, and ensure network security, stability, efficiency and high speed.
4. Fengrunda POE switches help customers achieve their requirements and cooperate with front-end video surveillance equipment to ensure system stability, continuous power supply, and smoothness.
