HDAC-QSFP-DD-400G
400G QSFP-DD Direct Attach Copper Cable
400Gbps passive DAC with QSFP-DD, 56G PAM4 per lane, up to 2m reach and zero power consumption.
- 400Gbps (56G PAM4/lane)
- SPEED
- DAC, 1m / 1.5m / 2m
- TYPE
- QSFP-DD
- CONNECTOR
| Speed | 400Gbps (56G PAM4/lane) |
|---|---|
| Type | DAC, 1m / 1.5m / 2m |
| Connector | QSFP-DD |

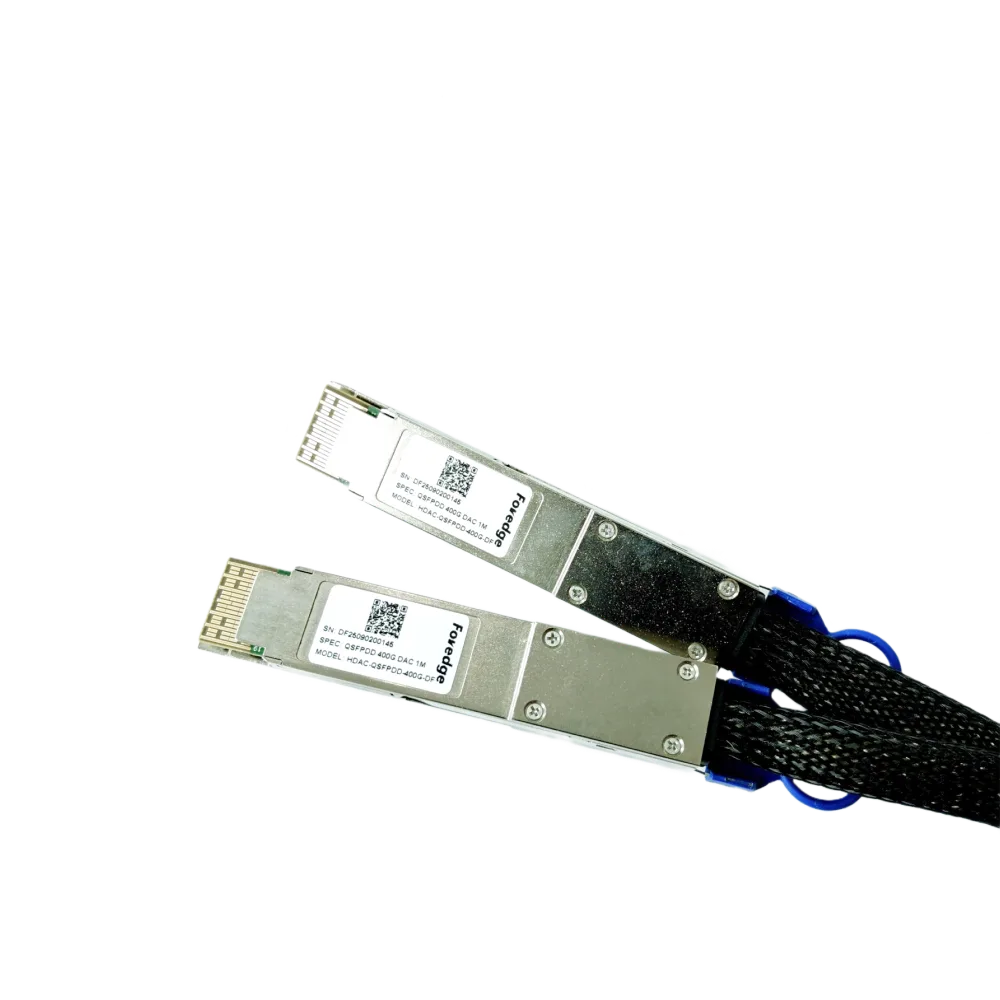

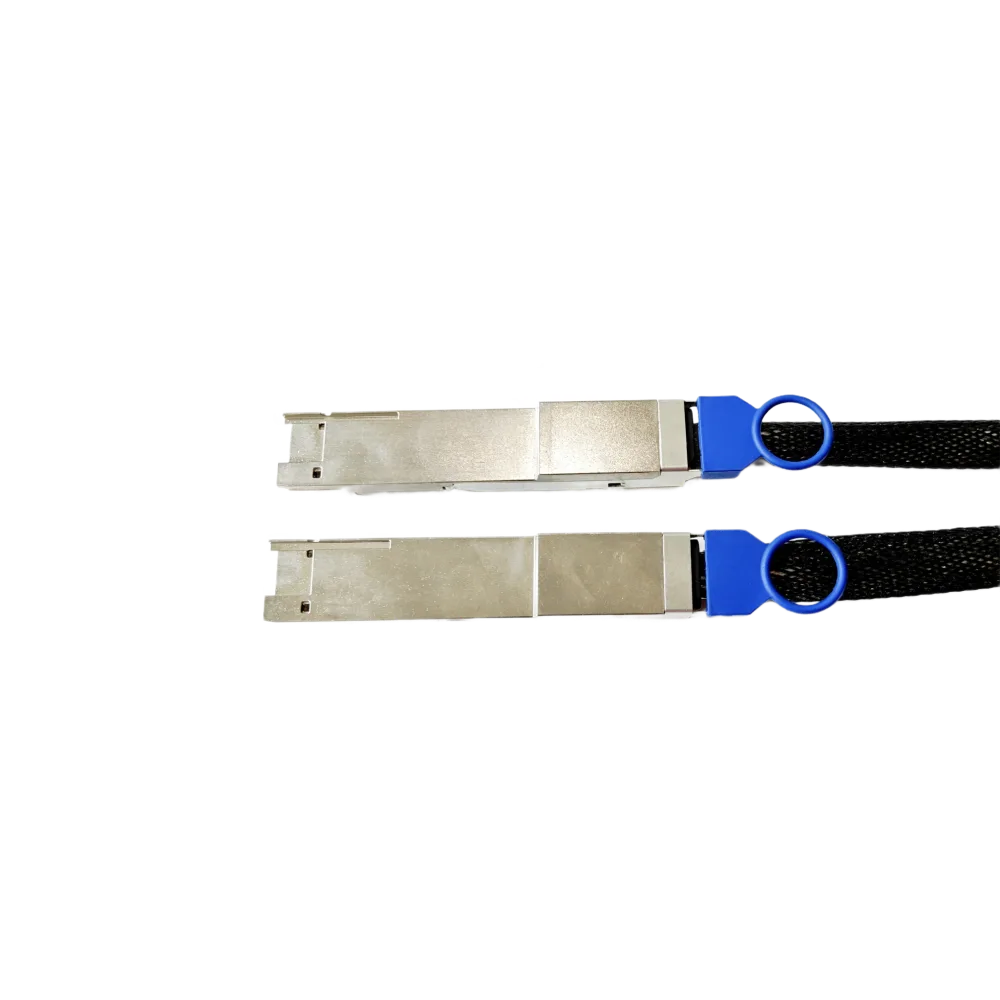

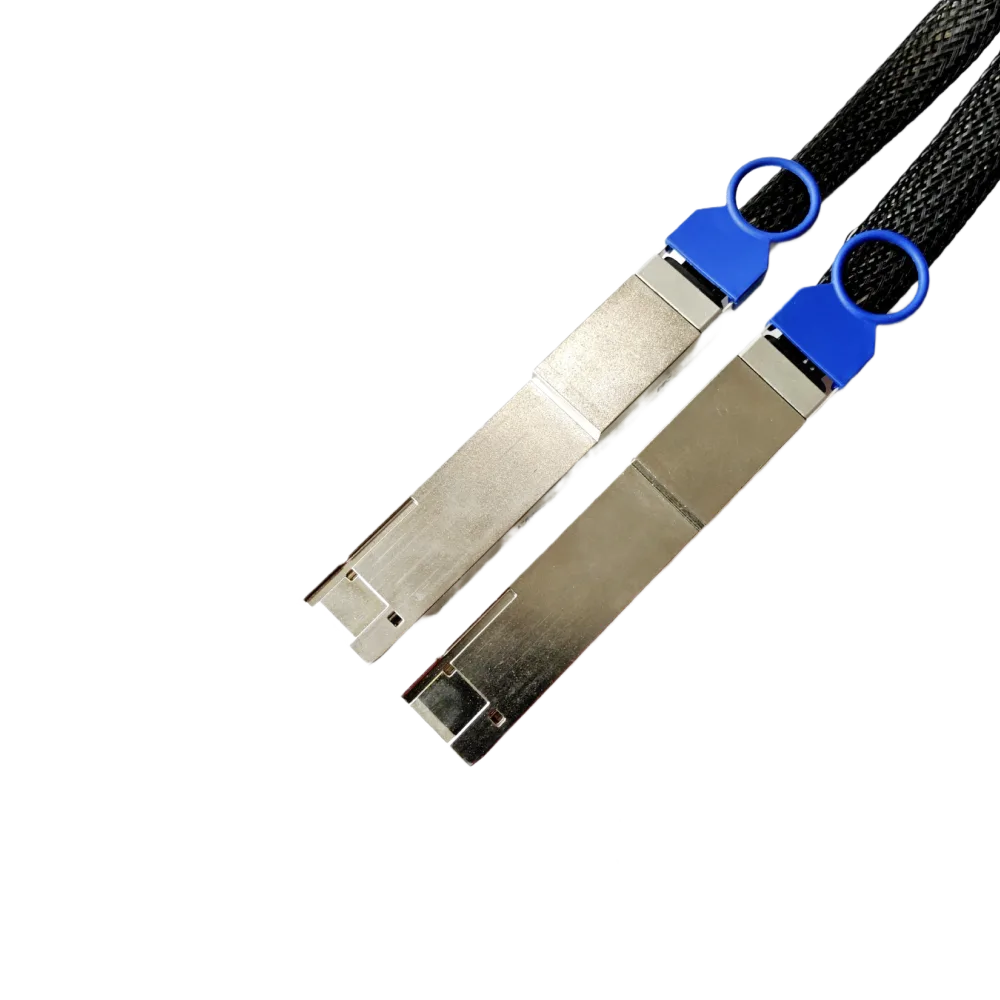

The Foredge 400G QSFP-DD DAC is designed for short-distance 400G Ethernet and InfiniBand interconnects. It delivers 400Gbps with 56Gbps per channel (PAM4, 53.125 GBaud/s), 100% compatible with all major brands of servers, switches and routers. The passive copper cable meets high-density port requirements with low cost and zero power consumption. Maximum length 2m, 30AWG wire, operating temperature 0 to 70 °C, compliant with SFF-8665 and RoHS.
SPEED
400Gbps (56G PAM4/lane)
TYPE
DAC, 1m / 1.5m / 2m
CONNECTOR
QSFP-DD
