IS108GPS-2F
10-Port Gigabit Managed Industrial PoE Switch
Hardened 10-port gigabit managed PoE switch with 30 W ports, 2 SFP uplinks, dual redundant DC inputs and EMC level 4 protection for harsh industrial environments.
- -40~75 °C
- OPERATING TEMP
- 48-56 V DC, P1/P2 backup
- DUAL DC POWER
- Level 4, ±6 kV port surge
- EMC / SURGE PROTECTION
| Ports | 8x GE PoE RJ45 + 2x GE SFP |
|---|---|
| PoE Budget | 246W (full load) |
| Management | Managed L2, SNMPv1/v2c/v3, SSH/SSL |
| Licensing | License-free |
| Form Factor | DIN-rail, IP40 metal |
| Redundancy | Dual DC inputs + RUN-Ring <10 ms |
| Use Cases | Intelligent transportation, video surveillance |
| Operating Modes | RUN-Ring / RSTP, VLAN, QoS |

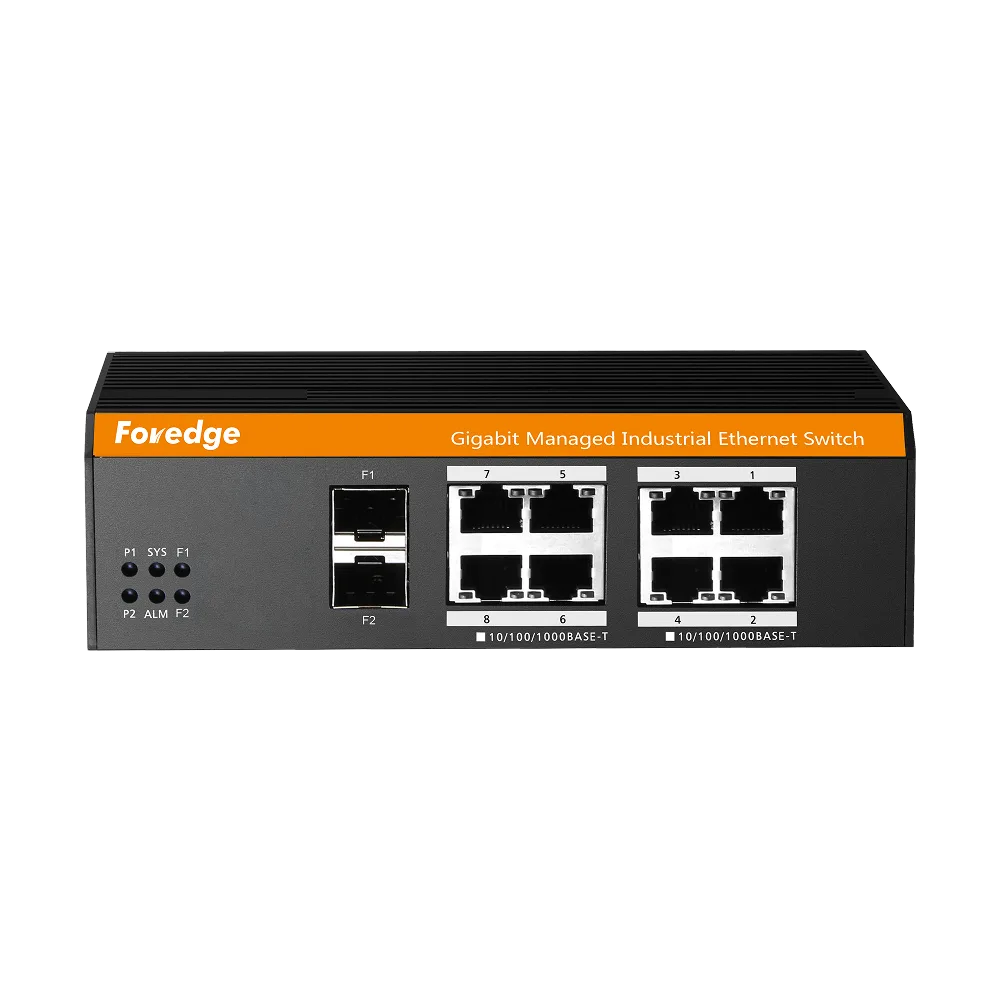

10-port gigabit managed industrial PoE switch (8x GE PoE RJ45 + 2x GE SFP) in an IP40 corrugated metal housing: 20 Gbps capacity, 30 W per port with 246 W full-load PoE output, dual 48-56 V DC inputs and -40 to 75 °C operation.
OPERATING TEMP
-40~75 °C
DUAL DC POWER
48-56 V DC, P1/P2 backup
EMC / SURGE PROTECTION
Level 4, ±6 kV port surge
