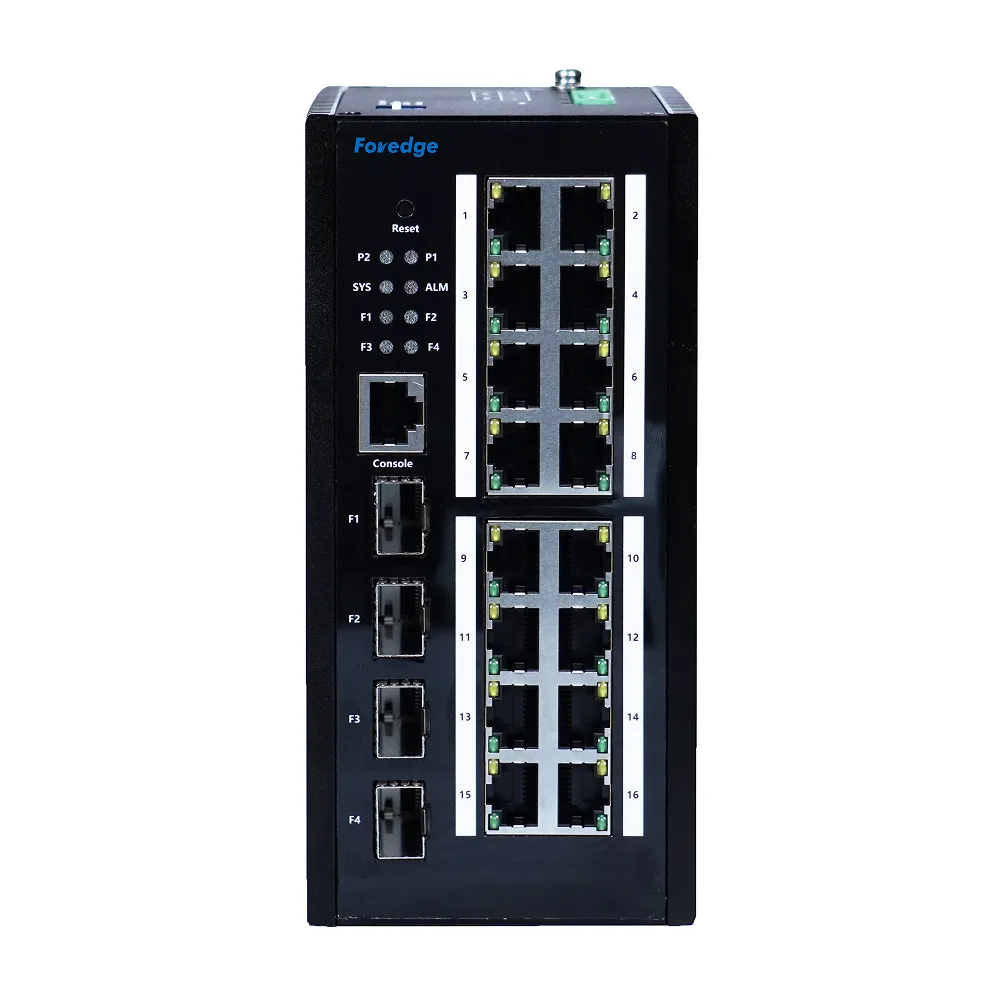

IS1016GS-4F
20-Port Gigabit Managed Industrial Switch
Hardened 20-port gigabit DIN-rail switch with 4 SFP uplinks, dual redundant DC inputs and EMC level 4 protection for harsh industrial environments.
- -40~75 °C
- OPERATING TEMP
- 12-56 V DC, P1/P2 backup
- DUAL DC POWER
- Level 4, ±6 kV port surge
- EMC / SURGE PROTECTION
| Ports | 16x GE RJ45 + 4x GE SFP |
|---|---|
| PoE Budget | Non-PoE |
| Management | Managed L2, SNMPv1/v2c/v3, SSH/SSL |
| Licensing | License-free |
| Form Factor | DIN-rail, IP40 metal |
| Redundancy | Dual DC inputs + RUN-Ring <10 ms |
| Use Cases | Intelligent transportation, video surveillance |
| Operating Modes | RUN-Ring / RSTP, VLAN, QoS |
20-port gigabit managed industrial switch (16x GE RJ45 + 4x GE SFP) in an IP40 corrugated metal housing: 40 Gbps capacity, 8K MAC table, RUN-Ring recovery under 10 ms, dual 12-56 V DC inputs and -40 to 75 °C operation for traffic and surveillance networks.
OPERATING TEMP
-40~75 °C
DUAL DC POWER
12-56 V DC, P1/P2 backup
EMC / SURGE PROTECTION
Level 4, ±6 kV port surge
