24-Port 10G L3 Managed Switch with 100G Uplinks
Cost-effective full-10G access switch with 2× 40/100G QSFP28 uplinks, Layer 3 routing and redundant pluggable power for campus, hotel and enterprise park networks.
- 24× 10G SFP+, 2× 40/100G QSFP28, console, OOB management, USB 2.0
- Network Interface
- 880 Gbps
- Switching Capacity
- 540 Mpps
- Packet Forwarding
| Network Interface | 24× 10G SFP+, 2× 40/100G QSFP28, console, OOB management, USB 2.0 |
|---|---|
| Switching Capacity | 880 Gbps |
| Packet Forwarding | 540 Mpps |
| MAC Address Table | 96K entries |
| Power Supply | 100–240V AC, redundant pluggable PSU |
The S6700-24TF-2QF is built on a new-generation high-performance hardware and software platform to provide flexible, cost-effective full 10G access with 100G uplinks. It supports Layer 3 routing protocols, complete security protection mechanisms, complete ACL/QoS policies and rich VLAN functions, and is easy to manage and maintain.
Full 10G access, 100G uplinks
24× 10G SFP+ plus 2× 40/100G QSFP28 uplinks in a fixed 1U rack chassis.
Layer 3 routing
L3 routing protocols for access, aggregation and core deployment roles.
Security & QoS
Complete security protection, ACL/QoS policies and rich VLAN functions.
Easy management
Out-of-band RJ45 management port with web UI, console port and RST button.

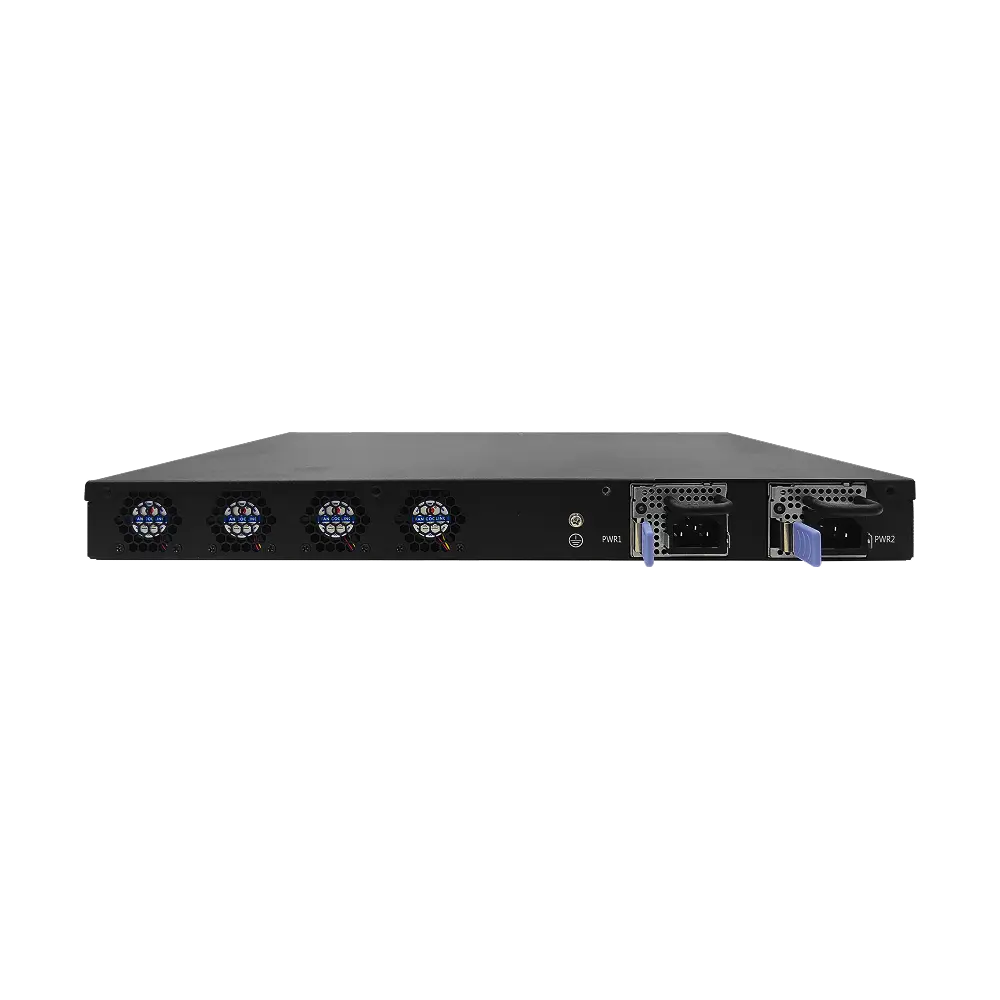

Redundant power
Redundant pluggable power supply on 100–240V AC input.
