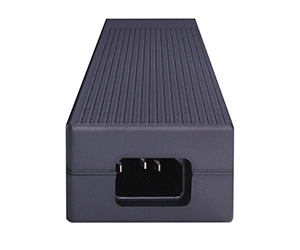

Iniettore PoE Gigabit PSE803BT
- 1 10/100M/1000M adaptive RJ45 port (Data)
- 1 10/100M10/100M/1000M adaptive RJ45 port (Data&Power) (Auto MDI/MDIX)
- Single port maximum 75W
- 12&36 Transmission of data and electricity
Descrizione
Panoramica
Is a single -port Gigabit PoE power supply device that fully complies with the IEEE 802. 3af/at/bt standard
Larghezza di banda del backplane dello switch
Umidità di lavoro
10% ~ 90% RH senza condensa
Inoltro dei pacchetti
Dimensioni (L × P × A)
165mm*62mm*38.5mm
porta dello switch
1/10/100M/1000M adaptive RJ45 port
1/10/100M10/100M/1000M adaptive RJ45 port
Specifiche tecniche
Modello | ● PSE803BT |
Input power | ●100-240VAC@50/60Hz |
Transmission rate | ●10/100/1000Mbps |
Transmission distance | ● Max 100 meters |
PoE Potenza supply | ●middle jumper method, end jumper method |
PoE output voltage | ●54VDC |
PoE output power | ● Max 75W |
PoE Spillo | ●4Pair：3/6/4/5（ + ），1/2/7/8（ – ） |
Indicatore LED | ● Power (yellow); PoE (green) |
Protection lever | ●Surge: Common mode of network port ±6KV ● Electrostatic (ESD): air ±8KV, contact ±6KV |
Ambiente Specifiche tecniche | Temperatura di lavoro: 0°C~40°C Temperatura di conservazione: 40℃〜70℃ Umidità di lavoro: 10%~90% RH non condensante ● Umidità di stoccaggio: 5%~90% RH non condensante |
Fisico Specifiche tecniche | ● Dimensions (LxWxH) ：165mm*62mm*38.5mm ●Shell material: black ABS fireproof |
Install and use | ● Plug and play; automatically detect the device and provide the power required by the device |
Sicurezza regolamenti | ●CE/FCC/RoHS/CCC |
