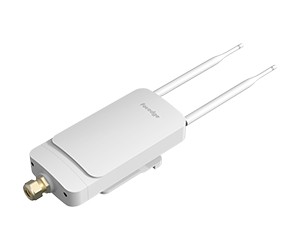

W668OAP Outdoor Dual-Band AX3000 WIFI 6 Wireless Access Point

Name: W668OAP Outdoor Dual-Band AX3000 WIFI 6 Wireless Access Point
SKU: AI106G-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-2-1-1-2-1-1-1-1-1-1-1-1-3-1-1-1-1-2-2
Availability: InStock

$0.00

Flash: SPI NAND 128MB

port：1*1000Mbps WAN/LAN adaptive network port

Working Humidity：10%~ 90% RH nun-condensing

Dimensions (W × D × H)：243*105.5*68.5mm(including bracket)

Description

Overview

W668OAP outdoor AP is recommended to be deployed in outdoor environments such as campus playgrounds, commercial plazas, wireless cities, and tourist attractions.

Flash

SPI NAND 128MB

Working Humidity

10%~ 90% RH nun-condensing

Dimensions (W × D × H)

243*105.5*68.5mm

port

1*1000Mbps WAN/LAN adaptive network port

Specifications

specifications
Product model	W668OAP
Flash	SPI Nand 128MB
DDR	256MB
2.4G working frequency band	2.4GHz ~ 2.484GHz
2.4G WIFI transmission protocol	802.11 b / g / n / ax
5G working frequency band	5.150GHz～5.850GHz
5G WIFI transmission protocol	802.11 a / n / ac / ax
WIFI antenna	2 external 2.4G & 5G dual-band antennas
Maximum speed	2.4G provides a maximum access rate of 574Mbps, and 5G provides a maximum access rate of 2402Mbps
2.4G wireless power	802.11b	11M	25±2dBm	1M	27±2dBm
	802.11g	54M	22±2dBm	6M	24±2dBm
	802.11n HT20	MCS7	22±2dBm	MCS0	24±2dBm
	802.11n HT40	MCS7	22±2dBm	MCS0	24±2dBm
	802.11ax HT20	MCS11	18±2dBm	MCS0	20±2dBm
	802.11ax HT40	MCS11	18±2dBm	MCS0	20±2dBm
5G Wireless Power	802.11a	54M	19±2dBm	6M	21±2dBm
	802.11n HT20	MCS7	25±2dBm	MCS0	27±2dBm
	802.11n HT40	MCS7	22±2dBm	MCS0	24±2dBm
	802.11ac HT20	MCS7	22±2dBm	MCS0	22±2dBm
	802.11ac HT40	MCS7	21±2dBm	MCS0	23±2dBm
	802.11ac HT80	MCS9	21±2dBm	MCS0	23±2dBm
	802.11ax HT20	MCS11	19±2dBm	MCS0	21±2dBm
	802.11ax HT40	MCS11	19±2dBm	MCS0	21±2dBm
	802.11ax HT80	MCS11	19±2dBm	MCS0	21±2dBm
	802.11ax HT160	MCS11	17±2dBm	MCS0	19±2dBm
2.4G receiving sensitivity	802.11b	11M	-87dBm	1M	-96dBm
	802.11g	54M	-75dBm	6M	-93dBm
	802.11n HT20	MCS7	-73dBm	MCS0	-92dBm
	802.11n HT40	MCS7	-70dBm	MCS0	-89dBm
	802.11ax HT20	MCS11	-64dBm	MCS0	-92dBm
	802.11ax HT40	MCS11	-61dBm	MCS0	-89dBm
5G reception sensitivity	802.11a	54M	-74dBm	6M	-92dBm
	802.11n HT20	MCS7	-73dBm	MCS0	-90dBm
	802.11n HT40	MCS7	-70dBm	MCS0	-87dBm
	802.11ac HT20	MCS7	-67dBm	MCS0	-91dBm
	802.11ac HT40	MCS7	-63dBm	MCS0	-88dBm
	802.11ac HT80	MCS9	-60dBm	MCS0	-84dBm
	802.11ax HT20	MCS11	-62dBm	MCS0	-91dBm
	802.11ax HT40	MCS11	-59dBm	MCS0	-89dBm
	802.11ax HT80	MCS11	-56dBm	MCS0	-86dBm
	802.11ax HT160	MCS11	-53dBm	MCS0	-83dBm
2.4G EVM	802.11b:≤-10 dB；802.11g:≤-25 dB；802.11n:≤-28dB ; 802.11ax: ≤-35 dB
5G EVM	802.11a:≤-25 dB； 802.11n:≤-28 dB；802.11ac:≤-32 dB ; 802.11ax:≤-35 dB
Frequency deviation (ppm)	±20ppm
Interface (network port)	1 10/100/1000Mbps adaptive WAN/LAN port, supports 48V POE power supply
External buttons	reset button (press for 6-10 seconds to restore factory default configuration)
Status indicator	three-color light (three different colors represent: sys-red, 2.4G-green, 5.8G-blue)
Power supply	PoE 802.3at, DC 12V/1.5A,
Maximum power consumption	< 15W
Product size	243105.568.5mm (including bracket)
Weight	about 1.6kg
Working environment	normal working temperature: -20°C to 55°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation)

Additional information

Models	W668OAP
Series	WIFI 6
