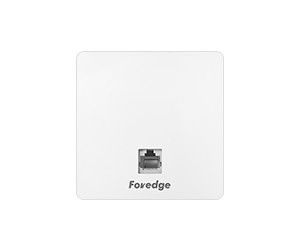

W60HAP Wi-Fi6 3000M dual-band panel AP

Name: W60HAP Wi-Fi6 3000M dual-band panel AP
SKU: AI106G-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-2-1-1-2-1-1-1-1-1-1-1-1-3-1-1-1-1-2-1
Availability: InStock

$0.00

Flash: SPI NOR 128MB

port：1 WAN+1 LAN full gigabit network port

Working Humidity：10%~ 90% RH nun-condensing

Dimensions (W × D × H)：86mm*86mm*44mm(Height of the outer wall part: 14mm)

Description

Overview

W60HAP V4 Wi-Fi6 3000M dual-band panel AP is a high-performance panel AP specially launched by Foredge for small and medium-sized offices, hotels, and dormitories.

Flash

SPI NOR 128MB

Working Humidity

5%~ 95% RH nun-condensing

Dimensions (W × D × H)

86 mm x 86 mm x 44 mm

port

1 WAN+1 LAN full gigabit network port

Specifications

Specifications
Product Model	W60HAP V4
Flash	SPI Nand 128MB
DDR	256M
WIFI ANTENNA	Built-in 2 2.4G & 5G dual-band antennas
2.4G operating frequency band	2.4GHz ~ 2.484GHz
2.4G WIFI transmission protocol	802.11 b / g / n /ax
5G operating frequency band	5.150GHz～5.850GHz
5G WIFI transmission protocol	802.11 a / n / ac /ax
Maximum rate	2.4G provides a maximum access rate of 574Mbps, and 5G provides a maximum access rate of 2402Mbps
Maximum supported wireless access	128+
2.4G wireless power	802.11b	11M	18±2dBm	1M	20±2dBm
	802.11g	54M	16±2dBm	6M	18±2dBm
	802.11n HT20	MCS7	15±2dBm	MCS0	17±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	17±2dBm
	802.11ax HT20	MCS11	13±2dBm	MCS0	15±2dBm
	802.11ax HT40	MCS11	13±2dBm	MCS0	15±2dBm
5G Wireless Power	802.11a	54M	15±2dBm	6M	17±2dBm
	802.11n HT20	MCS7	14±2dBm	MCS0	16±2dBm
	802.11n HT40	MCS7	14±2dBm	MCS0	16±2dBm
	802.11ac HT20	MCS7	13±2dBm	MCS0	15±2dBm
	802.11ac HT40	MCS7	13±2dBm	MCS0	15±2dBm
	802.11ac HT80	MCS9	13±2dBm	MCS0	15±2dBm
	802.11ax HT20	MCS11	12±2dBm	MCS0	14±2dBm
	802.11ax HT40	MCS11	12±2dBm	MCS0	14±2dBm
	802.11ax HT80	MCS11	12±2dBm	MCS0	14±2dBm
2.4G receiving sensitivity	802.11ax HT160	MCS11	12±2dBm	MCS0	14±2dBm
	802.11b	11M	-83dBm	1M	-90dBm
	802.11g	54M	-70dBm	6M	-84dBm
	802.11n HT20	MCS7	-68dBm	MCS0	-83dBm
	802.11n HT40	MCS7	-66dBm	MCS0	-83dBm
	802.11ax HT20	MCS11	-56dBm	MCS0	-83dBm
5G reception sensitivity	802.11ax HT40	MCS11	-53dBm	MCS0	-83dBm
	802.11a	54M	-70dBm	6M	-83dBm
	802.11n HT20	MCS7	-67dBm	MCS0	-83dBm
	802.11n HT40	MCS7	-64dBm	MCS0	-83dBm
	802.11ac HT20	MCS7	-58dBm	MCS0	-83dBm
	802.11ac HT40	MCS7	-57dBm	MCS0	-83dBm
	802.11ac HT80	MCS9	-56dBm	MCS0	-85dBm
	802.11ax HT20	MCS11	-57dBm	MCS0	-83dBm
	802.11ax HT40	MCS11	-56dBm	MCS0	-83dBm
2.4G EVM	802.11b: ≤-10 dB；802.11g: ≤-25 dB；802.11n: ≤-28dB；802.11ax: ≤-35 dB
5G EVM	802.11a: ≤-25 dB ；802.11n: ≤-28 dB ；802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB
Frequency deviation (ppm)	±20ppm
Interface (WAN)	1 10/100/1000Mbps adaptive WAN port, supporting PoE 48V power supply;
Interface (LAN)	1 10/100/1000Mbps adaptive LAN port
External buttons	Reset button (press and hold for 6-10 seconds to restore to factory default settings)
powered by	PoE 802.3af
Maximum power consumption	< 15W
Status indicator	SYS light (three-color light, 5G only: blue; 2.4G only: green; system startup: red)
Product size	86mm86mm44mm (height of the part outside the wall is 14mm)
weight	About 0.215kg
Work Environment	Normal operating temperature: -10°C to 40°C; Storage temperature: -40°C to 70°C; Humidity: 5% to 95% (no condensation)

Additional information

Models	W60HAP
Series	Panel AP
