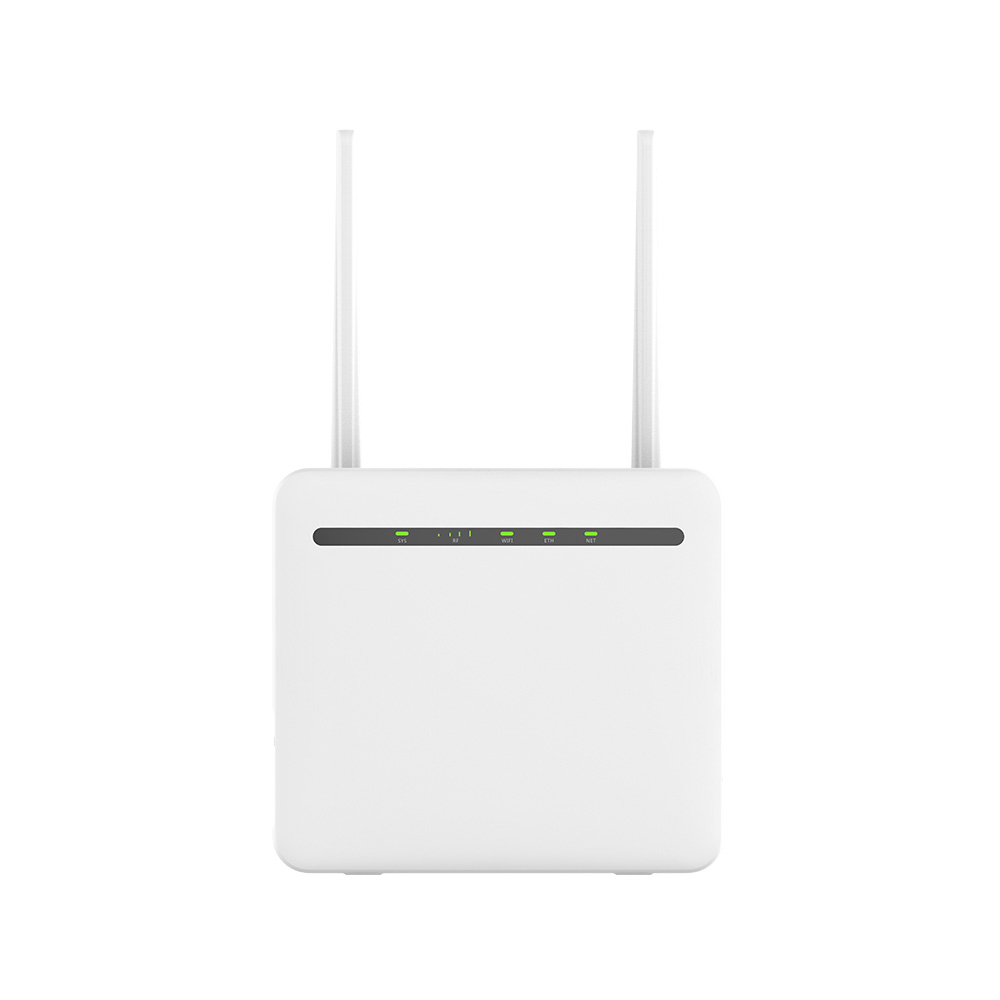

FMR-AC1200-SA 4G LTE Gigabit Dual-Band AC1200Mbps Wireless Router
● Support LTE FDD/TDD, WCDMA
●Category 6: DL 300 Mbps/UL 50 Mbps
●Support LTE 3GPP Release 10, WCDMA Release 8
●Support Europe, Middle East, Africa, Southeast Asia and Latin America
●Wi-Fi: 2.4G&5GHz,Wi-Fi 2*2 MIMO, DBDC(Dual Band Dual Concurrent)
●IEEE802.11 a/b/g/n/ac
●Maximum Users:32
●1*WAN+3*LAN, 10BaseT/100Base/1000Base automatic adaptive port
●Multi APN function (Optional) for Data, TR-069 services (Optional)
●Routing mode: NAT enable (Default)/lP pass-through (Optional)
●VPN client service (L2TP,PPTP)
●The actual data rate varies with network configuration.
Description
Overview
is a wireless gateway integrating LTE and high-speed Ethernet uplink access
Port
1*WAN+3*LAN, 10BaseT/100Base/1000Base automatic adaptive port
Working Humidity
5%RH~95%RH Non Condense
Dimensions (W × D × H)
175.3mm*167mm*51.9mm
Specifications
Specification parameter | |
Parameter | Description |
Model | FMR-AC1200-SA |
Technical Standard | Compatible with FDD-LTE, TDD-LTE, WCDMA Default IEEE802.11 a/b/g/n/ac |
Maximum Data Throughput | LTE CAT6 FDD-LTE(DL/UL) 300Mbps/50Mbps TDD-LTE(DL/UL) 223Mbps/20.4Mbps DC-HSPA+ (DL/UL) 42/5.76Mbps |
USIM/SIM | 1*USIM Card Slot (2FF, SIM card) 3V SIM card and 1.8V SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface eSIM is optiona |
Operating Frequency | Working frequency band support for Europe, Southeast Asia, Africa, South America and other regions is optional |
Ethernet | 1*WAN+3*LAN, 10BaseT/100Base/1000Base automatic adaptive por |
Antenna | 2*internal Wi-Fi antenna, 2*internal LTE antenna 2*external LTE antenna(Optional) |
Wi-Fi protocol | 2.4G&5GHz, Wi-Fi 2*2 MIMO, DBDC IEEE802.11 a/b/g/n/ac |
Receive Diversity | Support Receive Diversity |
Buttons | Power, WPS |
LED | Power Indication LED RF Signal Strength LEDs Wi-Fi/WPS Indication LED WAN/LAN Status LED Internet Status LED |
SW Update | TR069 & FOTA & Local |
Voice | Optional VoLTE & VOIP & CS is supported |
IPv4/IPv6 | Support |
Reset | Pinhole |
VPN Pass Through | PP2P/L2TP/IPSec |
Power Voltage | DC12V/1A |
Power Consumption | Maximum Power Consumption: < 13W Typical Power Consumption: < 8W |
ESD | ESD Protection circuit; Contact±6KV, Air±8KV |
Operating Temperature | Normal: 0℃ to +45℃ |
Storage Temperature | -20℃ to +70℃ |
Humidity | 5% ~ 95% |
Dimension | 175.3*167*51.9mm |
Weight | About 0.95kg (Adapters and mounts not included) |
Additional information
| Models | FMR-AC1200-SA |
|---|---|
| Series |
