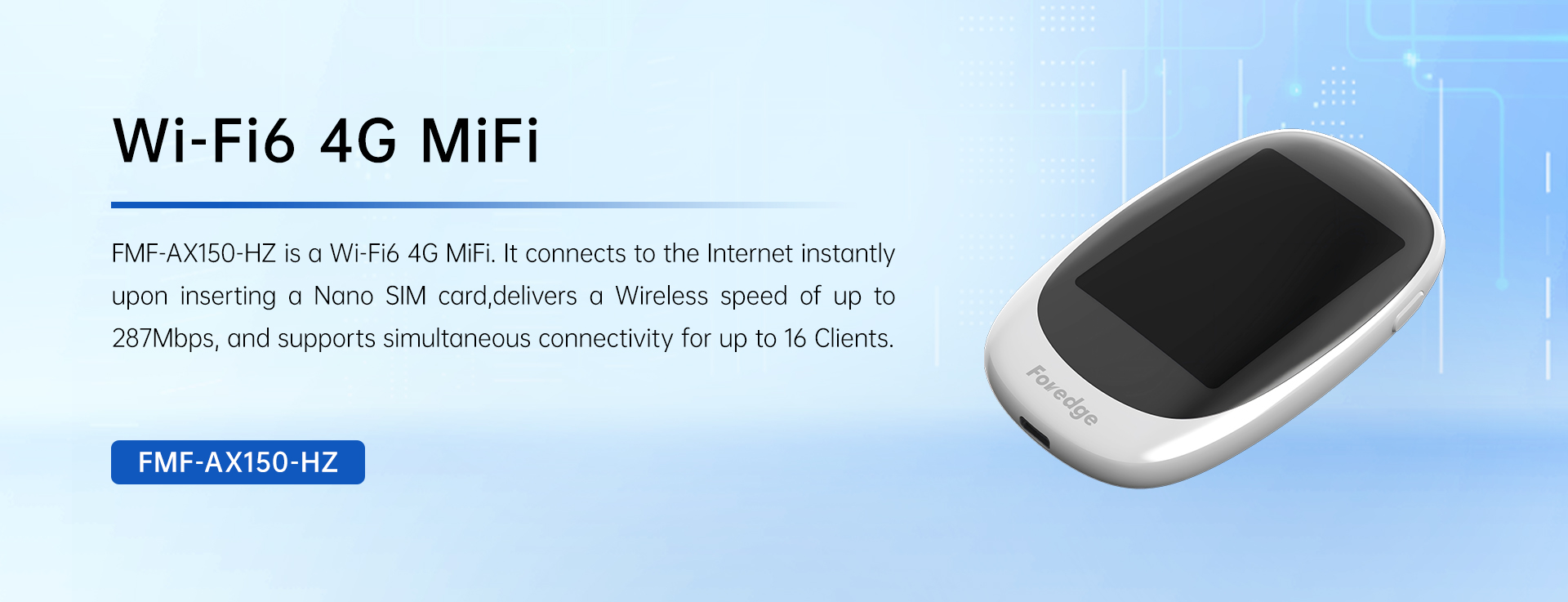

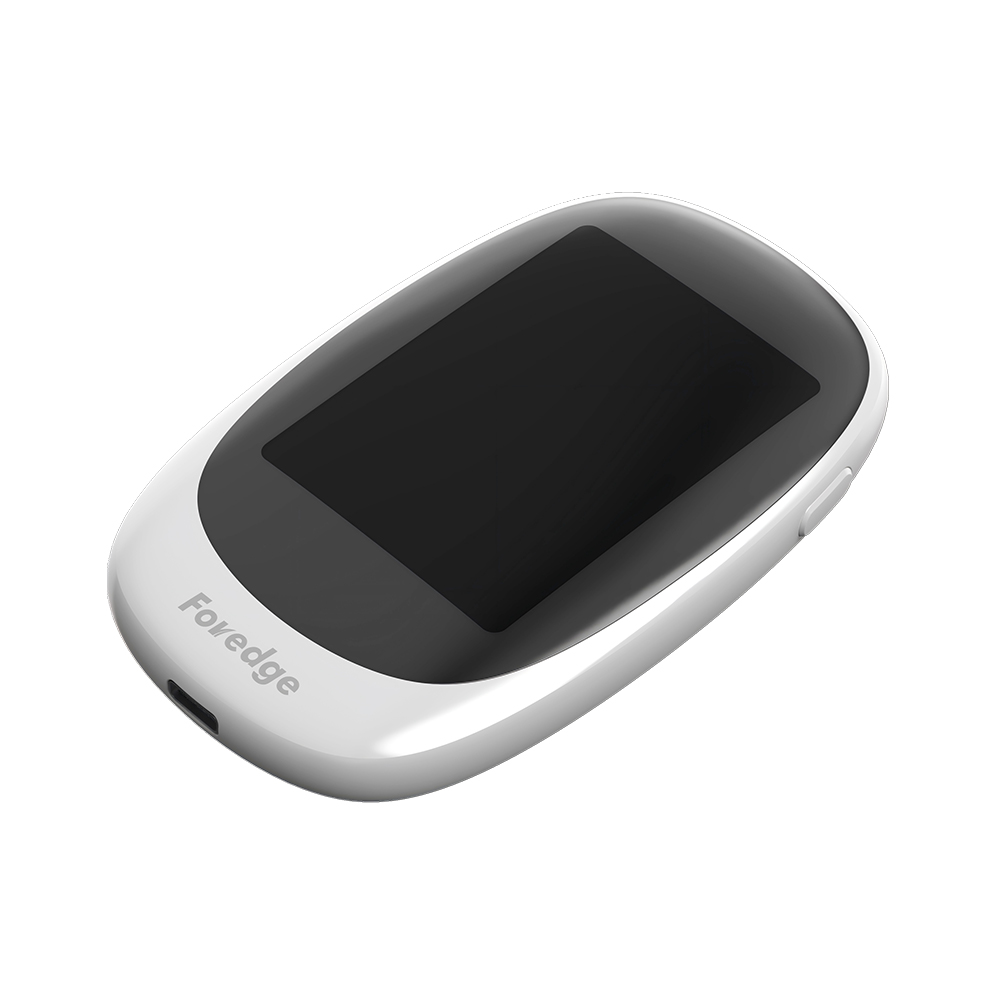

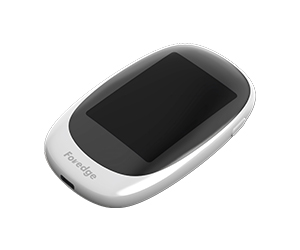

FMF-AX150-HZ 4G LTE Mobile Wi-Fi6 Hotspot

Sort

specification

Description

Remark

Wireless specification

LTE Category

LTE-FDD

LTE-TDD

WCDMA

Wireless rate specification

287Mbps

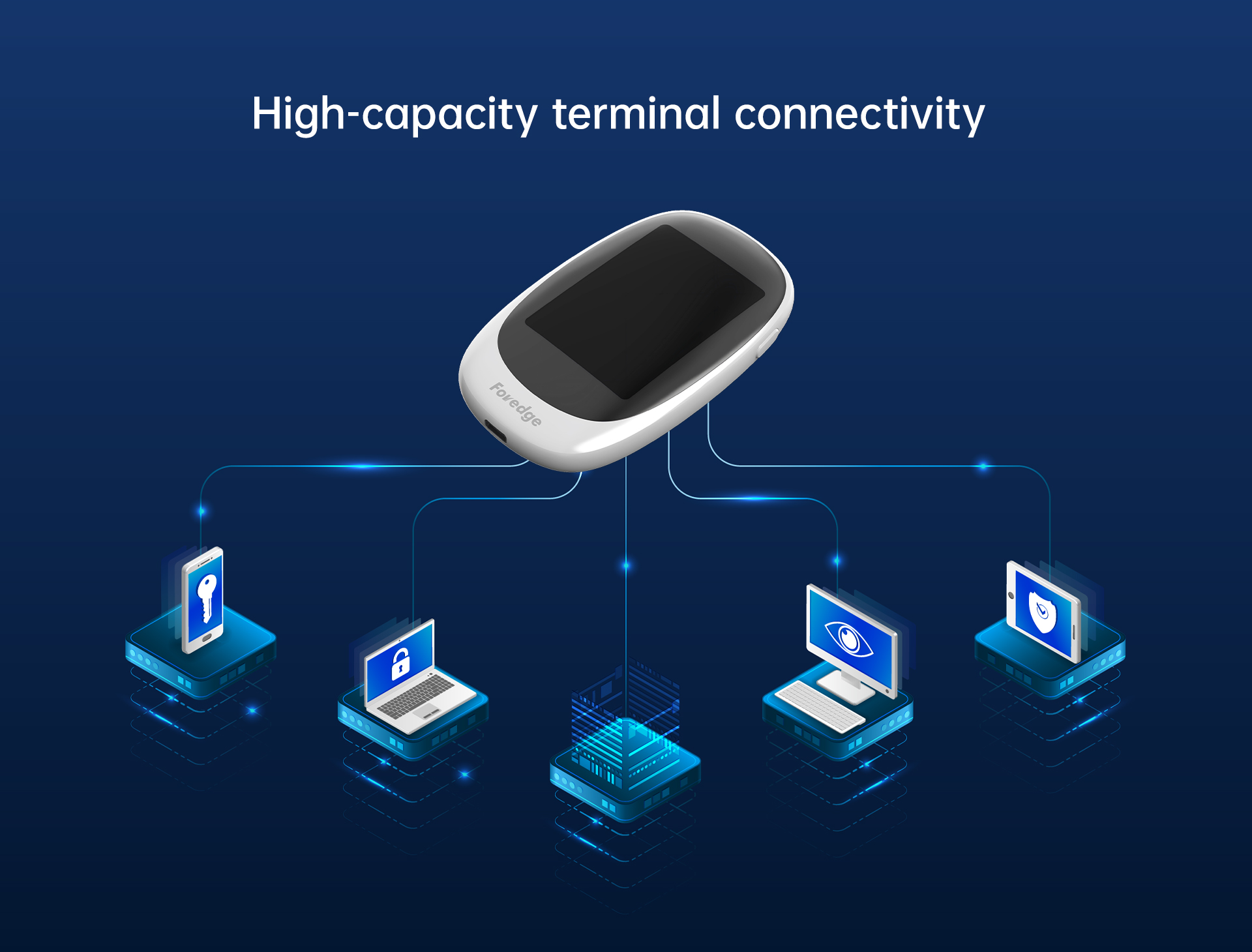

Access number

16

Radio frequency and antenna

Technical standard

IEEE 802.11a/b/g/n/ac/ax

Radio-frequency antenna

Built-in Omnidirectional Antenna

Frequency band (optional)

Default Asia, Africa, Europe, North America, Latin America three versions, can also be customized

WiFi

2.4GHz, 802.11 b/g/n（*802.11 ax optional）, channel: 1~13

Indicator

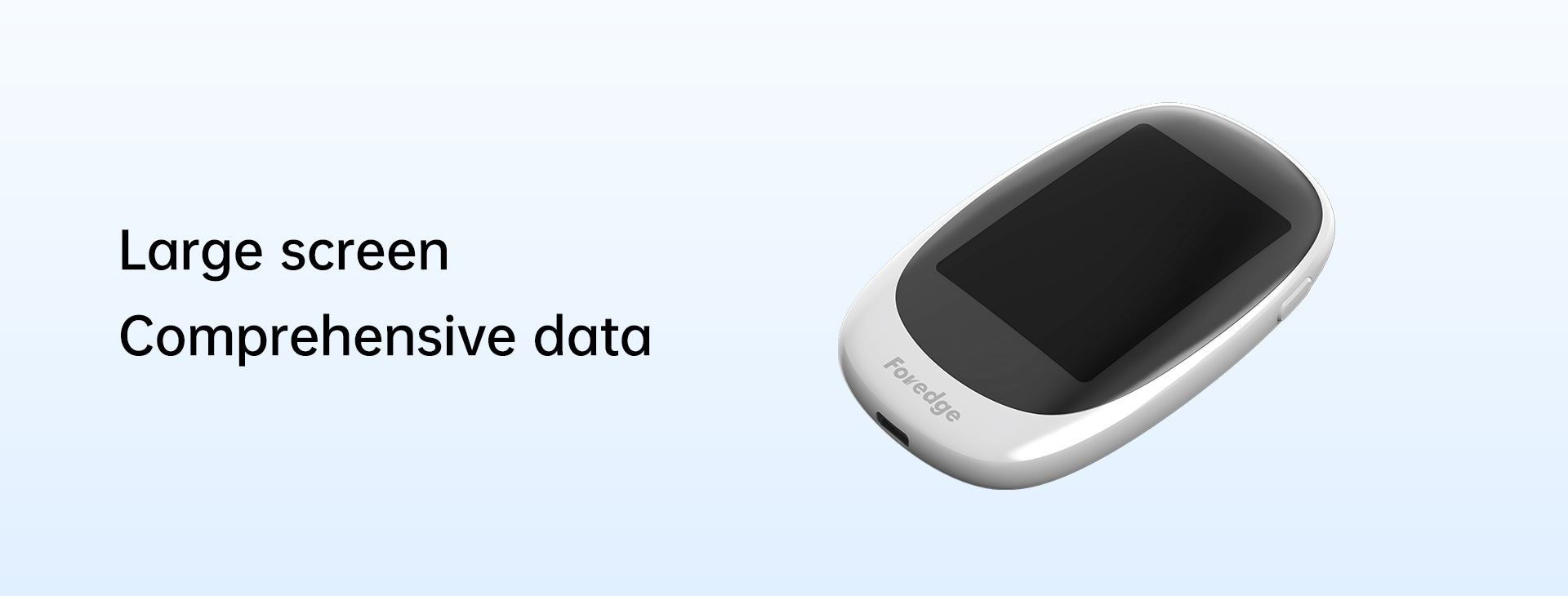

Display screen

LCD，Dimension：128*160

Either

LED indicator

Power, Internet, WiFi, SMS

Card

Esim

Support up to two (domestic version default configuration)

Support customization

USIM

Support standard MICRO-SIM(3FF), compatible with 1.8/3.3V (overseas version default this configuration)

TF card

T-FLASH (Default not with, can support custom tape)

Port

USB

TYPE-C，Charging and data in one

Button

Button

Power, Reset, WPS

Power

Battery capacity

3000mAh (Length 78* width 44* Thickness 6.5)

Battery voltage

4.35V/4.2V

Charging current

5V，1.0A

ESD

Contact 4K/ air 8K

Dimension

Length * width * height

108mm×68mm×22mm

Environment

Operating temperature

-10℃〜50℃

Storage temperature

-40℃〜 70℃
