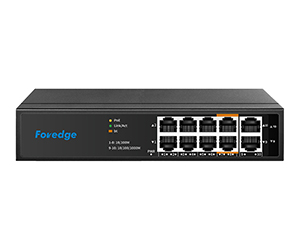

AI8010M 10-port 100M AI PoE switch
- 8*RJ-45 100M Port(PoE)
- 2*RJ-45 100M Port(Up-link)
- Max poe power：7/8th ports max 60W; 1-6th ports max 30W
- Maximum power of power supply：65W
- All ports support 6KV lightning protection
Description
Overview
10 port 100M built-in power POE switch that supports AI intelligent recognition and long-distance mode recognition
Switch backplane bandwidth
2.0Gbps
Working Humidity
10% ~ 90% RH nun-condensing
Packet forwarding
1.49Mpps
Dimensions (W × D × H)
210mm*152mm*40mm
switch port
8*RJ-45 100M Port(PoE)
2*RJ-45 100M Port(Up-link)
Specifications
Networking Ports | ●8*RJ-45 100M Port(PoE) ●2*RJ-45 100M Port(Up-link) |
Networking Standards | ● IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、 IEEE 802.3af、IEEE 802.3at、IEEE 802.3bt |
Performance | ● Bandwith ：2.0Gbps ● Packets Forwarding Rate：1.49Mpps ● MAC table size：1K ● Forwarding type：Storatge and Forwarding |
LED | ● Power Indicator ● PoE Indicator ● LINK/ACT Indicator |
PoE | ● 1/2( +) ，3/6(-) |
POWER | ● Max poe power：7/8th ports max 60W; 1-6th ports max 30W ● Maximum power of power supply：65W |
Dimension | ● W* D* H：210mm*152mm*40mm |
Evironment | ● Working Temperature： 0 ° ~ 4 0 °C ● Storage Temperature： -40℃〜 70℃ ● Working Humidity： 10% ~ 90% RH nun-condensing ● Storage Humidity： 5 % ~ 9 0% RH nun- condensing |
Safty Compliance | ● CE/ROHS/FCC |
Additional information
| Models | AI8010M |
|---|---|
| Series |
