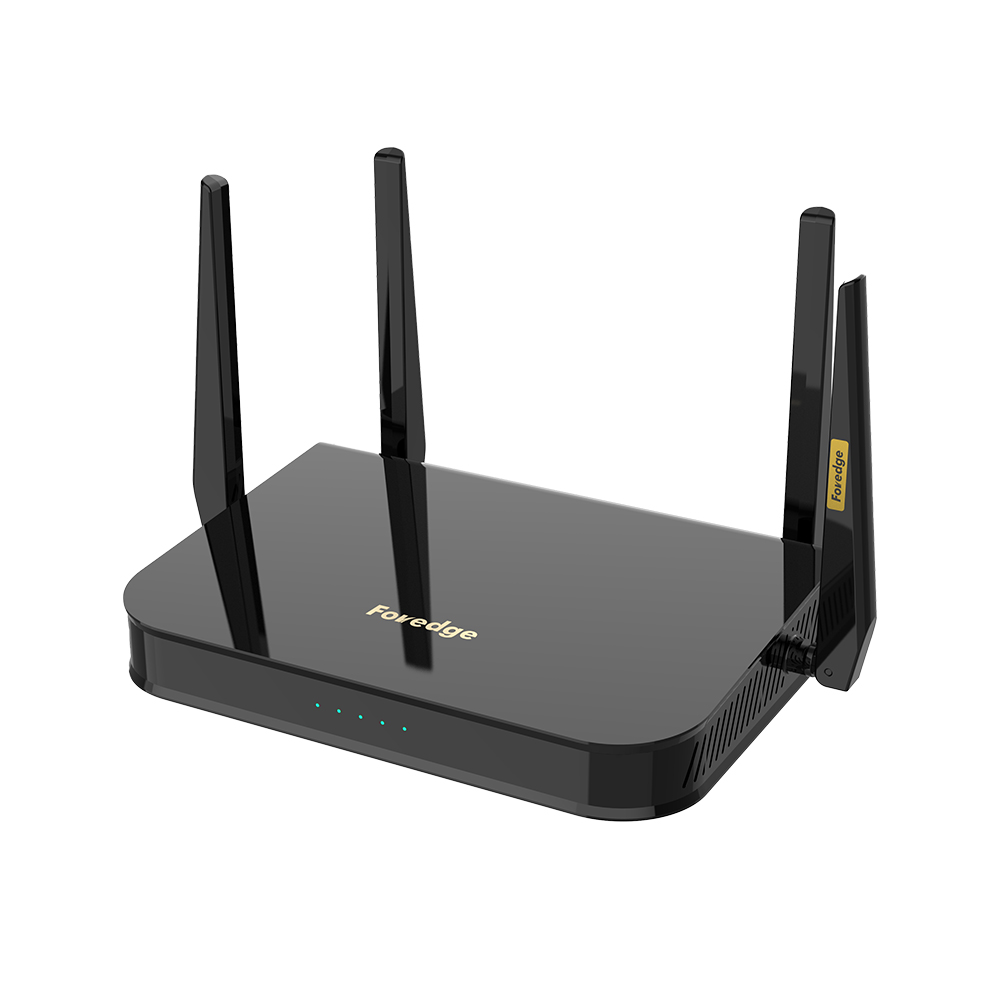

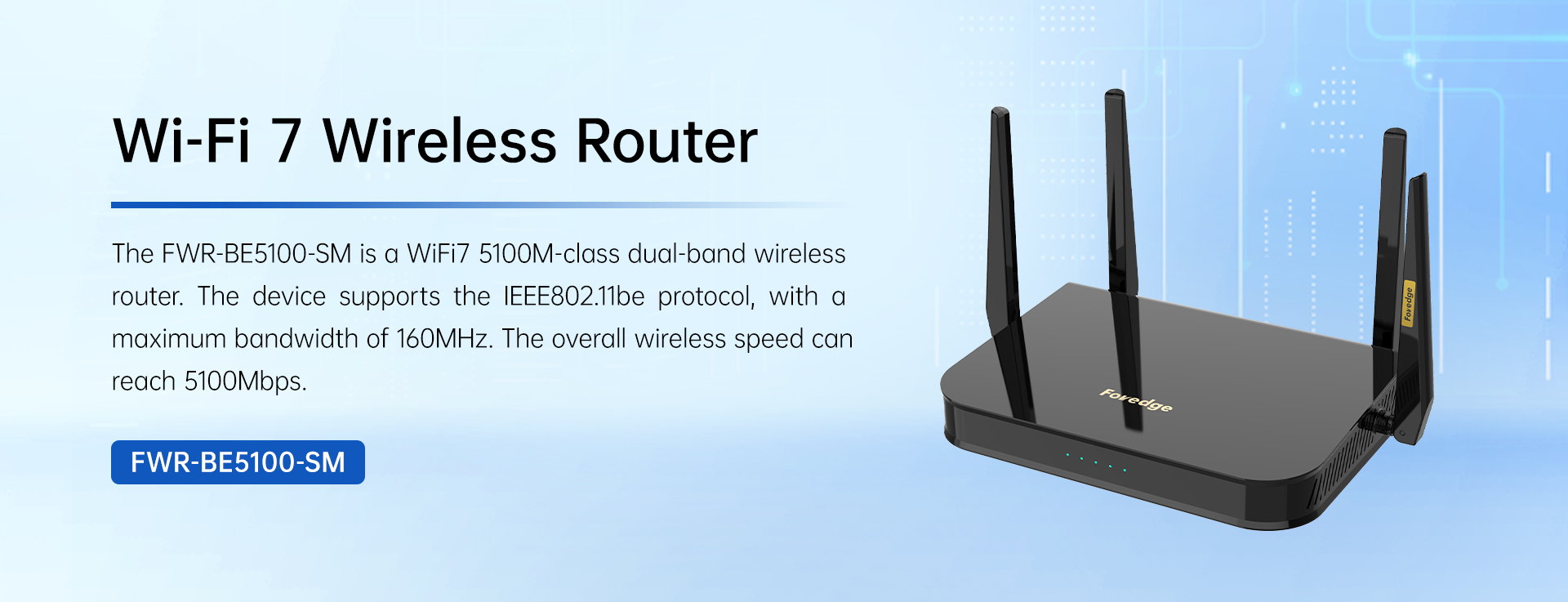

FWR-BE5100-SM Wi-Fi 7 Wireless Router
- Provides 1*GE WAN+4*GE LAN
- Support automatic adjustment of wireless transmission rate
- Support 2.4G and 5G dual-band bands.
- Supports WPA-PSK,WPA2-PSK,WPA /WPA2-PSK,WPA3-SAE,WPA2-PSK/WPA3-SAE encryption and security mechanisms to ensure the security of data transmitted in wireless networks.

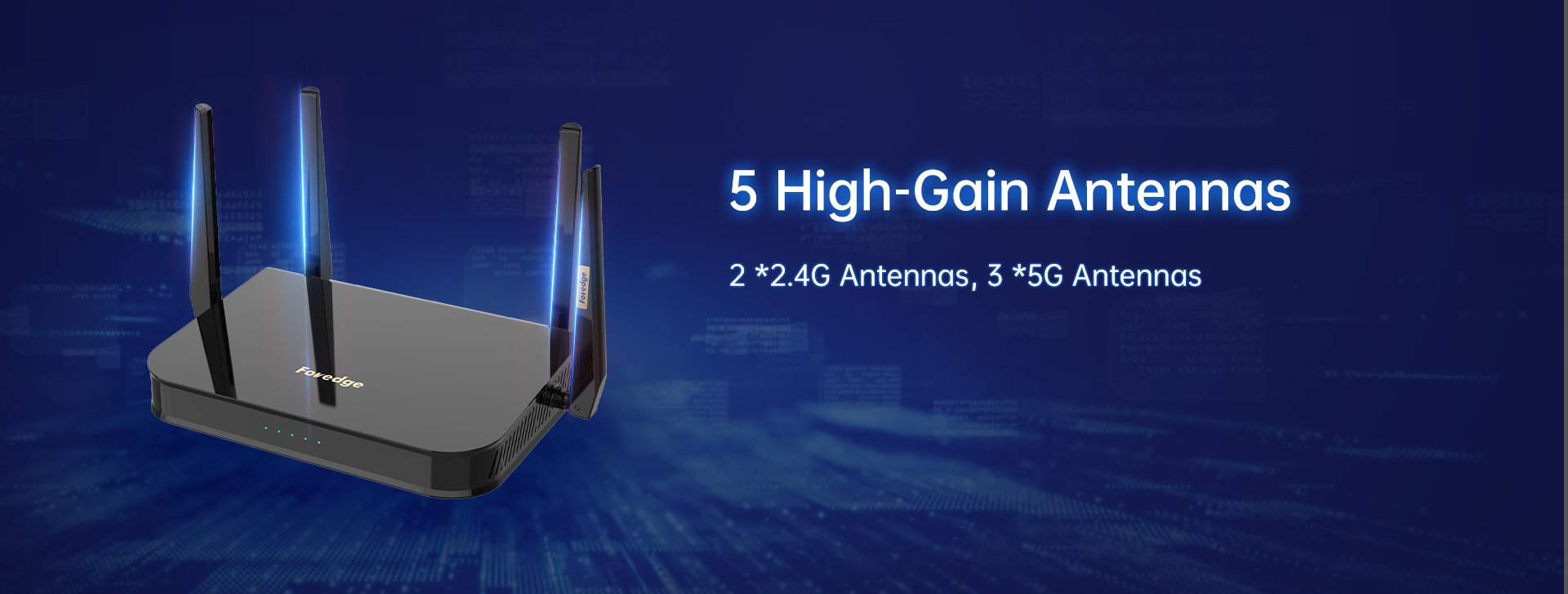

- External 5 WIFl antennas (2 *2.4G Antennas，3 *5G Antennas).
- Support SSID broadcast control, effectively prevent SSID broadcast leakage.
- Built-in network address translation (NAT) function
- Support WiFI7 Protocol
- Supports the trunk function.

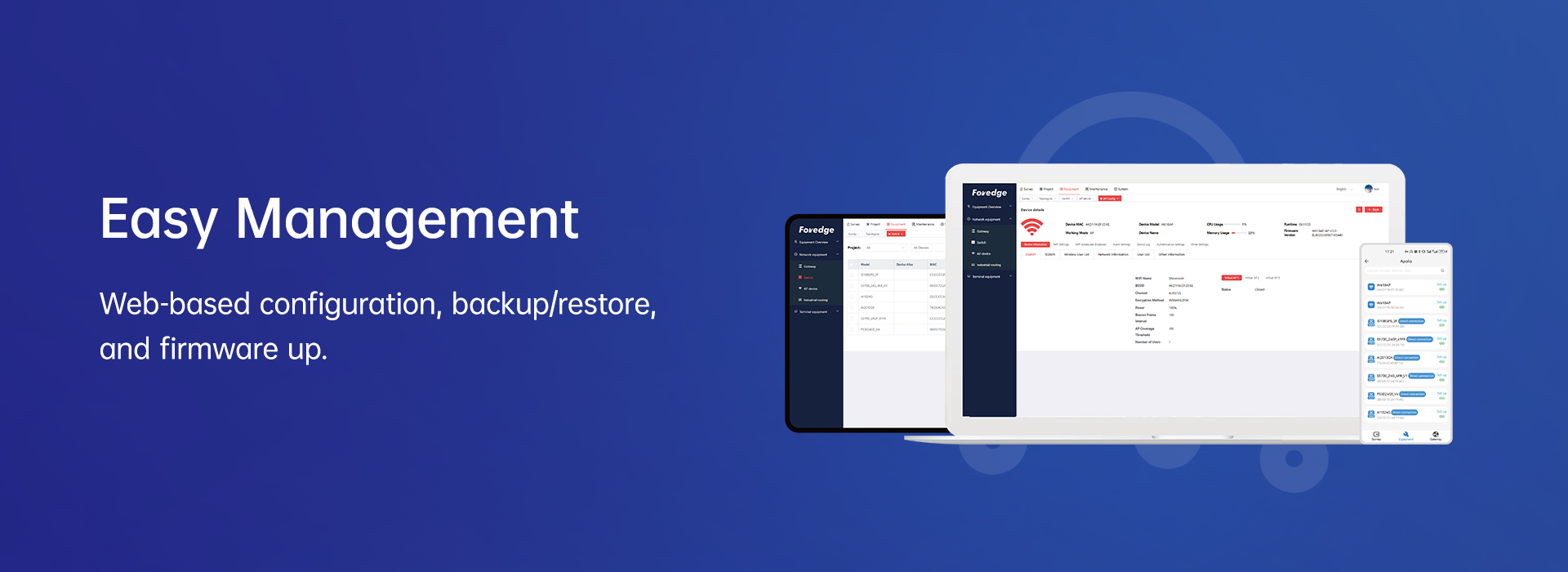

- Support Web management, easy installation wizard.
- Support WMM to make your voice and video smoother.
- Support VPN transparent transmission, UPnP, DMZ and other functions.
- Support for Apollo cloud platform.
Description
Overview
A wireless dual band router with a transmission rate of 1167 Mbps
Port
Provide 1 10/100M/1000M Ethernet (WAN) interface
Provide 3 10/100M/1000M adaptive Ethernet (LAN) interfaces and support automatic MDI/MDIX
Working Humidity
5%RH~90%RH Non Condense
Dimensions (W × D × H)
218mm×153mm×40mm
Specifications
|
Hardware feature |
||||
|
Protocol standard |
IEEE 802.11b、IEEE 802.11g、IEEE 802.11a、IEEE 802.11n、IEEE 802.11ac、IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
|||
|
Port |
1*10/100M/1000M WAN port, supporting Auto MDI/MDIX 3*10/100M/1000M LAN ports, supporting Auto MDI/MDIX |
|||
|
Button |
Reset/WPS (long press for 5 seconds to reset, short press for 1sWPS) |
|||
|
LED |
Three-color light design: green, red, blue |
|||
|
Antennas |
Four external omnidirectional 5dbi gain non-detachable antennas |
|||
|
Power |
DC 9V/0.85A |
|||
|
Wireless feature |
||||
|
Basic function |
Wireless enabled/disabled SSID broadcast is enabled or disabled Channel selection: 1 ~ 13 (2.4G); 36 ~ 48 + 149 ~ 165 (5GHz) 2.4G bandwidth: 20MHz, 40MHz 5G bandwidth: 20MHz, 40MHz, 80MHz |
|||
|
2.4G Frequency band |
2412~2472MHz |
|||
|
5G Frequency band |
5180~5240MHz 5745MHz~5825MHz |
|||
|
Wireless transmission speed |
2.4G 2TR up to 300Mbps 5G 2T2R is up to 866Mbps |
|||
|
Power |
2.4G Transmitting power： 802.11b 22±1.5dBm 802.11g 21±1.5dBm 802.11n20 19±1.5dBm 802.11n40 19±1.5dBm 802.11ac40 17.5±1.5dBm Transmitting power： 802.11a 19±1.5dBm 802.11n20 18.5±1.5dBm 802.11n40 18.5±1.5dBm 802.11ac80 17.5±1.5dBm |
|||
|
Working mode |
Router Ap Wisp Client+AP |
|||
|
Wireless security |
Wireless MAC address filtering WPA-PSK、WPA2-PSK、WPA/WPA2-PSK WPS（PBC） |
|||
|
Other features |
Wireless network isolation Wireless site scanning Seamless roaming between frequency bands |
|||
|
WiFi Settings |
WiFi Settings (dual frequency, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth) Guest network (SSID, encryption, PWD, encryption algorithm, duration, speed limit) |
|||
|
Software feature |
||||
|
Network Settings |
Supports the connection types of WAN interfaces: PPPoE, dynamic IP, and static IP, MAC address cloning, IPV6 Settings, and IPTV Settings |
|||
|
LAN setup |
DHCP Server Settings Management IP Settings |
|||
|
Firewall |
Port mapping, DDNS, DMZ, WAN anti-ping, remote WEB management |
|||
|
Advanced Settings |
Traffic statistics, Internet speed control, parental control |
|||
|
System management |
System status, time Settings, password management, configuration management, firmware upgrade |
|||
|
Others |
||||
|
Dimension |
218mm×153mm×40mm |
|||
|
Working environment |
Operating temperature: 0℃ to 40℃ Storage temperature: -40℃ to 70℃ Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
|||
Additional information
| Models | FWR-BE5100-SM |
|---|---|
