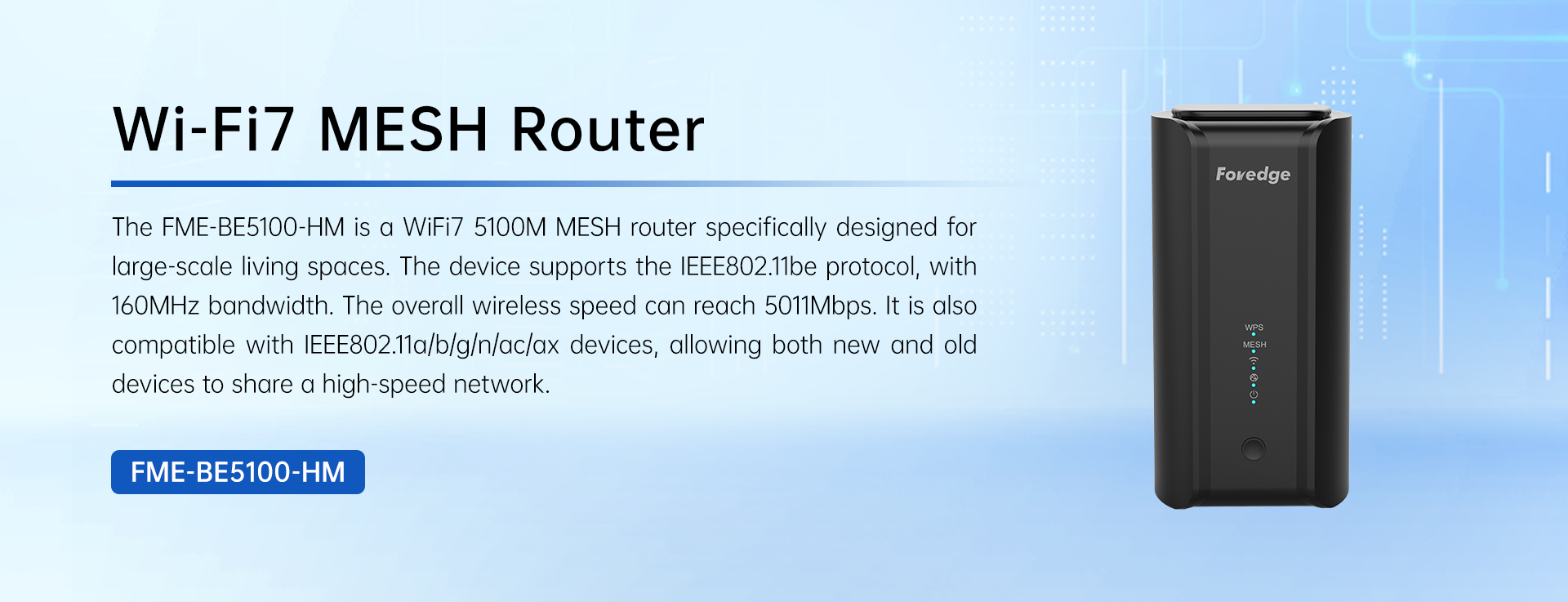

FWR-BE5100-HM WiFi7 5100M MESH Router
- 160MHz bandwidth, 5011Mbps Wi-Fi speed, enjoy 4K high-definition video.
- MESH networking technology, support up to 6 devices (1 + 5) to form a self- organizing network.
- MLO dual-band aggregation enables the device to simultaneously connect to the 2.4G and 5G frequency bands.
- MU-MIMO technology enables multiple terminals to transmit simultaneously on the same channel, allowing you to enjoy your favorite content without any network congestion.
- OFDMA technology enables multiple user data to be transmittedsimultaneously in each frame, significantly enhancing the Wi-Fi transmission efficiency.
- 4K-QAM modulation has lower latency compared to WIFI6, effectively reducingnetwork delay and significantly enhancing the gaming experience.
- The equipment provides 1 2.5G Ethernet WAN port and 3 Ethernet LAN ports, enabling full utilization of each megabit of external network bandwidth.

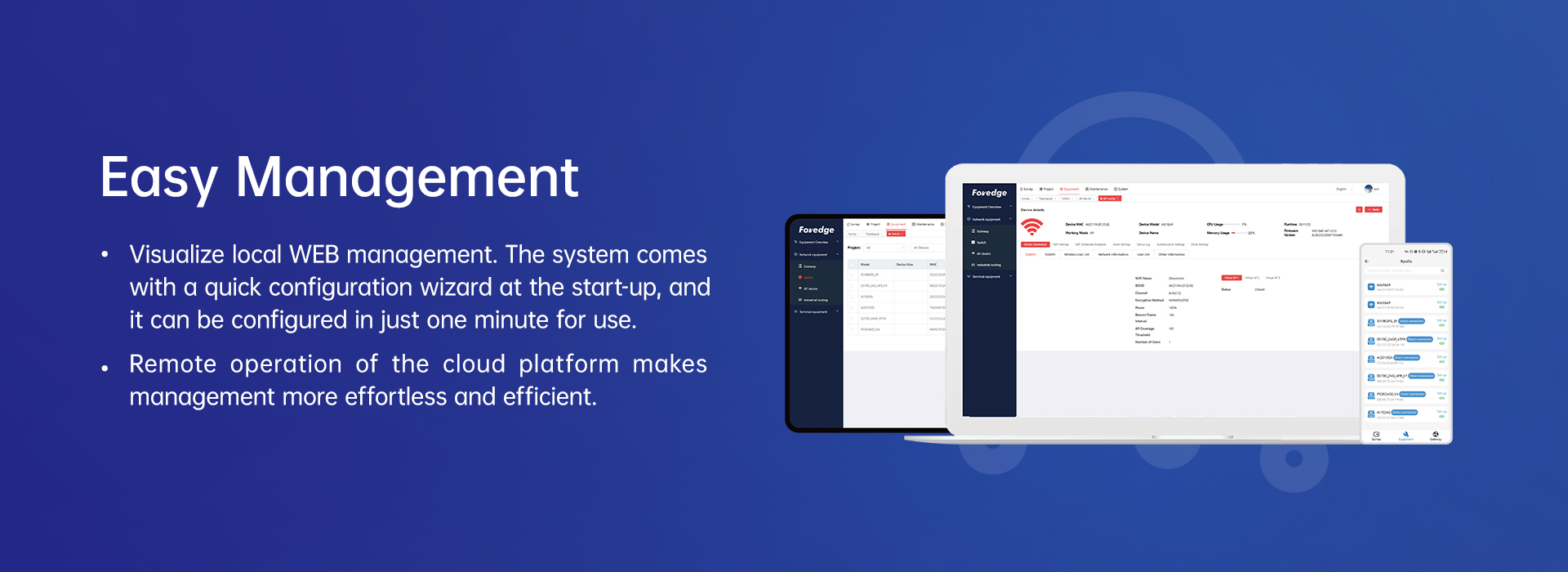

- Visualize local WEB management. The system comes with a quick configuration wizard at the start-up, and it can be configured in just one minute for use.
- Remote operation of the cloud platform makes management more effortless and efficient.
Description
Overview
A wireless dual band WiFi6 router with a transmission rate of 3000Mbps
Port
1×10/100M/1000M/2500M WAN Port (Auto MDI/MDIX)
3×10/100M/1000M LAN Port (Auto MDI/MDIX)
Working Humidity
10% - 90% RH(non-considering)
Dimensions (W × D × H)
112mm×108mm×213m
Specifications
|
Hardware feature |
||||
|
Protocol standard |
IEEE 802.11a/b/g/n/ac/ax / IEEE 802.3 / IEEE 802.3u / IEEE 802.3x/IEEE 802.3bz |
|||
|
Port |
1*10/100M/1000M/2500M WAN port, supporting Auto MDI/MDIX 3*10/100M/1000M LAN ports, supporting Auto MDI/MDIX |
|||
|
Button |
WPS/MESH button Reboot/Reset button |
|||
|
LED |
5×Green Led |
|||
|
Antennas |
4×5dbi external (non-detachable) 1×5dbi built-in (non-detachable) |
|||
|
Power |
DC 12V/1.5A (Outer diameter: 5.5mm, Inner diameter: 2.1mm) |
|||
|
Wireless feature |
||||
|
Wi-Fi Settings |
Dual-band integration Simultaneous operation of 8 SSIDs Wireless black and white list Guest network WPS Isolation of SSIDs TWT |
|||
|
2.4G Frequency band |
2412~2472MHz (Channel：1-13) |
|||
|
5G Frequency band |
5180~5350MHz (Channel：36-64） 5490MHz~5730MHz (Channel：100-144) 5735MHz~5835MHz (Channel：149-165) |
|||
|
Wireless transmission speed |
2.4G：688Mbps 5G：4323Mbps |
|||
|
MIMO |
2.4G：2×2 MU-MIMO 5G：3×3 MU-MIMO |
|||
|
Transmission Power |
2.4G：20dBm±2dB 5G：23dBm±2dB |
|||
|
Working modes |
Router Bridge WDS |
|||
|
Radio Settings |
Countries/regions setting Channel setting Bandwidth setting Minimum signal strength for connection Wi-Fi transmission power setting Wi-Fi Scheduler Spatial multiplexing Greenfield mode |
|||
|
Easy Mesh |
Support automatic election of the master node 3 levels of device cascading |
|||
|
Software feature |
||||
|
Network Settings |
Supports the connection types of WAN interfaces: PPPoE, dynamic IP, and static IP, MAC address cloning, IPV6 Settings, and IPTV Settings |
|||
|
Status Monitoring |
Equipment information(model, firmware version, SN 、 IP 、MAC 、Uptime 、CPU usage 、memory usage) Network monitoring (uplink rates 、downlink rates, connection duration) |
|||
|
Application Settings |
Speed limits IP and MAC PPTP/ L2TP VPN DDNS |
|||
|
Equipment Upgrade |
Local firmware Upgrade Online firmware Upgrade |
|||
|
System management |
NTP, System logs, Kernel logs, Configuration backup, Reset, Restart |
|||
|
Others |
||||
|
Dimension |
112mm×108mm×213mm |
|||
|
Working environment |
Operating temperature: -10℃ to 50℃ Storage temperature: -40℃ to 70℃ Operating humidity: 10%-90%RH (non-considering) Storage humidity: 10%-90%RH (non-considering) |
|||
Additional information
| Models | FWR-BE5100-HM |
|---|---|
